EVOQ Series

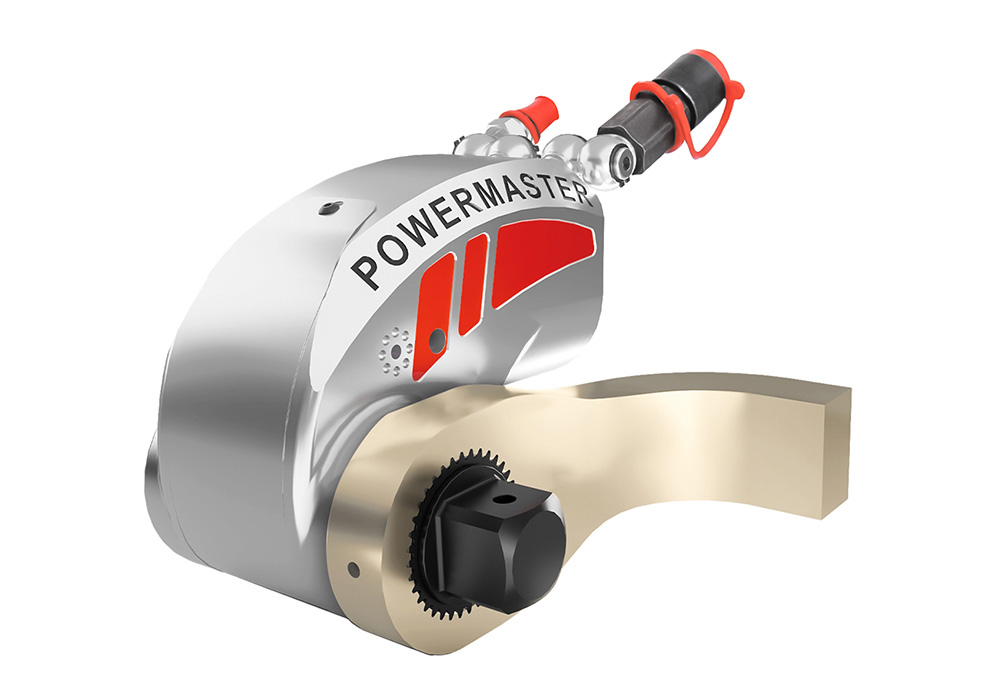

The EVOQ series wrenches have similar features to the PSD series wrenches but with the additional advantage of having an “Inline to square drive” reaction arm which prevents torsional twisting load on the body of the hydraulic wrench that happens with conventional hydraulic wrenches.
Technical Data
| Model No. | EV-2 | EV-3 | EV-5 | EV-7 | EV-11 |
|---|---|---|---|---|---|
| Square Drive | 3/4” | 1” | 1.1/2” | 1.1/2” | 1.1/2” |
| Min. Torque Kg-m(Ft/Lbs) |
18 (132) | 45 (330) | 77 (560) | 102 (740) | 162 (1174) |
| Max. Torque Kg-m(Ft/Lbs) |
183 (1,325) | 460 (3,330) | 770 (5,600) | 1020 (7,400) | 1612 (11,659) |
| Output Accuracy | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% |
| Repeatability | 100% | 100% | 100% | 100% | 100% |
| Duty Cycle | 100% | 100% | 100% | 100% | 100% |
| Tool Weight Kg/(Lbs) | 1.77 / (3.90) | 4.09 / (9.00) | 8.85 / (19.50) | 13.5 / (29.60) | 16.8 / (37.10) |

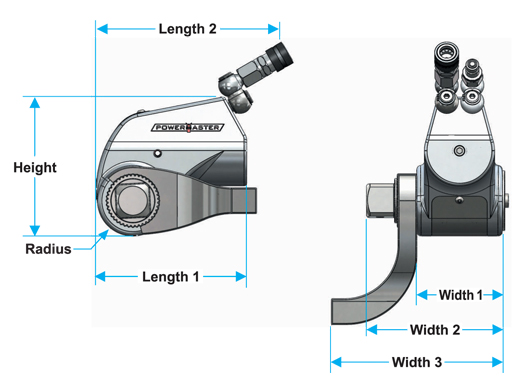

Dimensions
| Model
No. |
EV-2 | EV-3 | EV-5 | EV-7 | EV-11 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | |
| Height | 104.60 | 4.12 | 134.50 | 5.29 | 162.30 | 6.40 | 182.20 | 7.17 | 198.35 | 7.81 |
| Length1 | 109.00 | 4.30 | 148.80 | 5.85 | 176.00 | 6.93 | 208.43 | 8.20 | 227.35 | 8.95 |
| Length2 | 170.90 | 6.72 | 209.00 | 8.22 | 216.70 | 8.53 | 290.93 | 11.45 | 313.33 | 12.33 |
| Radius | 25.00 | 0.98 | 32.50 | 1.27 | 41.28 | 1.62 | 45.20 | 1.78 | 49.88 | 1.96 |
| Width1 | 66.00 | 2.59 | 82.80 | 3.25 | 100.00 | 3.93 | 116.80 | 4.60 | 125.00 | 4.92 |
| Width2 | 101.00 | 3.97 | 123.30 | 4.85 | 159.00 | 6.25 | 177.20 | 6.97 | 186.30 | 7.33 |
| Width3 | 141.00 | 5.55 | 183.00 | 7.20 | 200.00 | 7.87 | 218.00 | 8.58 | 250.70 | 9.87 |
