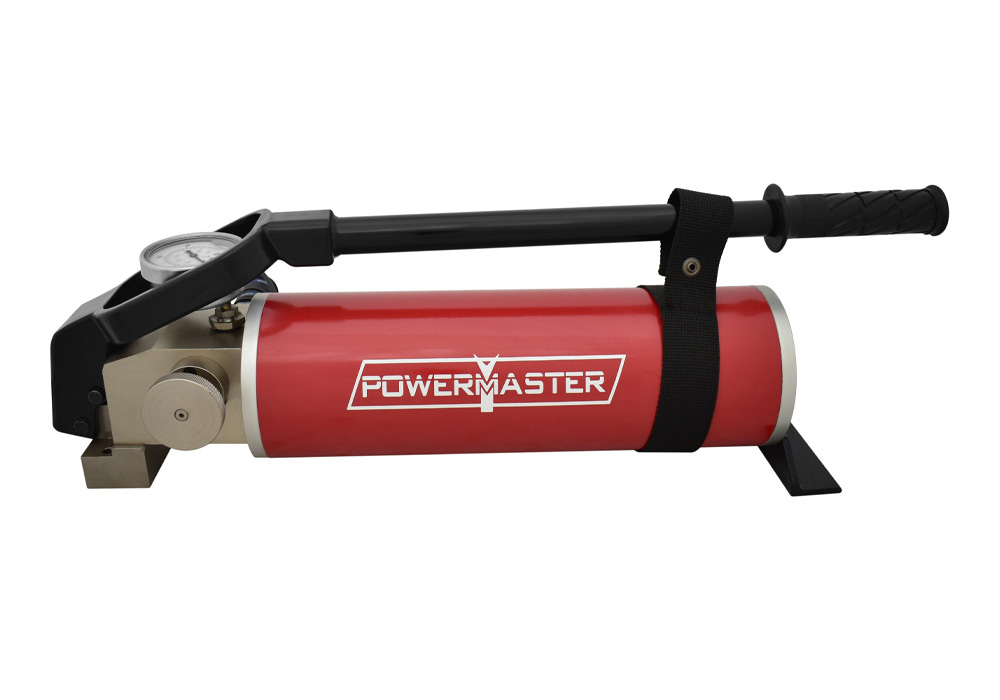

Hand Pump PU-HP-1500
Hand Pump
This hand pump is specialy designed for bolt tensioner applications. The pump is compact and light in weight with longer handle needing very little effort to generate max working load. All pumps are supplied with suitable fittings and stainless steel 70 mm dia pressure gauge.
| Model No. | Description | Usable Oil Capacity |
Outlet Coupler |
Dimensions | Net Weight |
||
|---|---|---|---|---|---|---|---|
| Length | Width | Height | |||||
| (Liters) | mm | mm | mm | Kg. | |||
| PU-HP-1500 | 1500 bar Hand Pump c/w 200 bar gauge | 3.0 | HCS-150-F | 615 | 200 | 190 | 12 |
