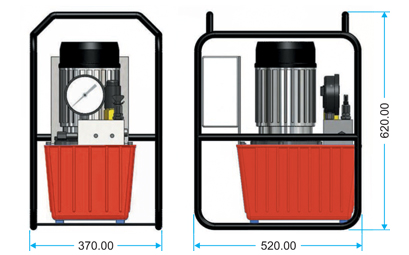

EP-1000 (Electric)

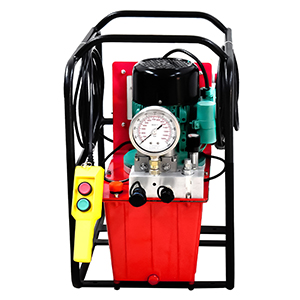

EP1000 with Mono Port

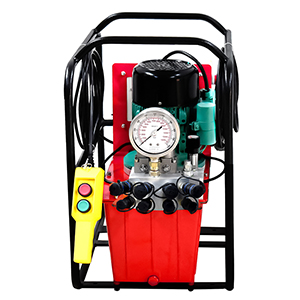

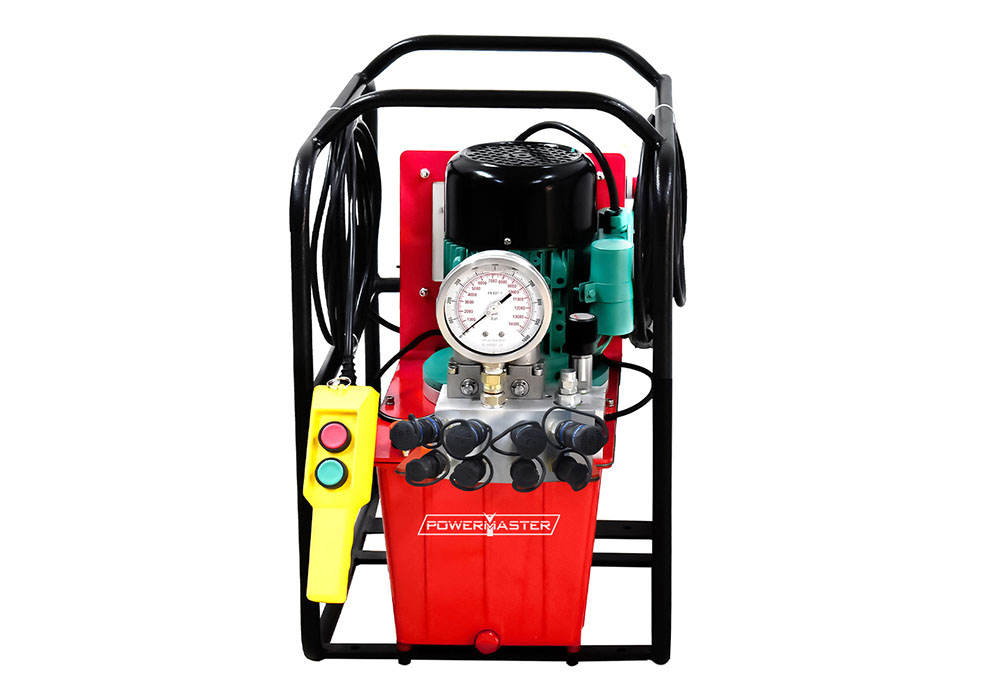

EP1000 with Quadra Port ( 4 Port )
Features
- Quadra-Port Multi-Port Manifold (Max. 4 Ports).
- Cool running continuous duty axial piston pump.
- Single phase induction motor.
- 115V and 230V available.
- Starts under full load.
- Runs on reduced voltage.
- Quiet operation (approx. 80 dBA @ 10,000 PSI).
- Rugged remote pendant to control motor and valve.
- Easily adjustable pressure control knob.
- Auto-dump relieves oil pressure from hoses.
- Completely enclosed motor housing and electronics.
- 2 Gallon oil reservoir.
- Precise PSI/BAR pressure gauge.
- Quick-connect no-drip couplers with safety locking collar.
- Supplied with dual non-conductive high pressure hose with couplers.
| Resvr. Size (Gal.) | Valve | Motor Specifications | Flow Rate | Weight | |||
|---|---|---|---|---|---|---|---|
| Control | Type | 600 psi | 10,000 psi | kg | lbs | ||
| 2 | Solenoid | 3 Way/2 Pos. | 1.5 HP Single Phase | 11 lpm | 0.9 lpm | 38 | 84 |
Retract pressure is preset at 1,300 PSI.
