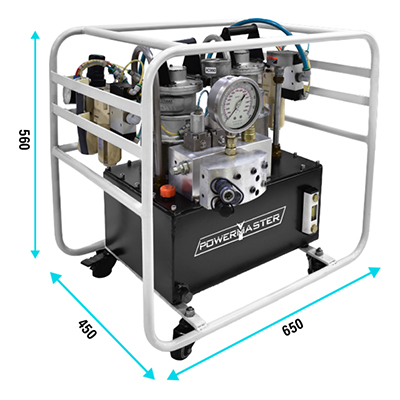

PM-TWAP-1000 Pneumatic
PM-TWAP-1000 - High Flow - High Speed for Heavy Duty Application
The PM-TWIN AIR Hydraulic Torque Wrench Pump gives the operator the power they need to utilize 700 BAR for bigger tool size. Fitted with a five-gallon reservoir this pump will have enough oil to use with Quadra port manifold. PM-Twin pump come with wheel casters that ensure you can move this pump from application to application to have less effort to operator.
Features :
- Twin powerful industrial heavy duty air motor.
- Dual Air Motor with dual FRL unit operated with single remote pendant.
- Runs on 7 BAR / 100 PSI air.
- Cool running continuous duty axial piston cum gear pump.
- 5 Gallon oil reservoir.
- Rugged remote pendant to control motor and valve.
- Easily adjustable pressure control knob.
- Auto - dump relieves oil pressure from hoses.
- Quadra - Port Multi - Port Manifold (Max. 4 Ports).
- Precise PSI/BAR pressure gauge filled with glycerine.
- Supplied with dual non-conductive high pressure hose with couplers.
| Resvr. Size(Gal) | Valve | Motor Specifications | Flow Rate @ 70 cfm/ 90psi | Weight | |||
|---|---|---|---|---|---|---|---|
| Control | Type | 600 psi | 10,000 psi | kg | lbs | ||
| 5 | Solenoid | 3 Way/2 Pos. | Heavy Duty Dual 6 AM 4 HP Air Motor | 18.5 lpm | 2.5 lpm | 45 | 99 |
Retract pressure is preset at 1,300 PSI.
Dimension : 430 mm x 500 mm
