Nano Series Torque Multipliers
Features Nano Series Torque Multipliers
- Compact, Heavy Duty Torque Multiplier with a torque multiplication of 5:1.
- Accuracy better than ± 4% with high repeatability.
- Provided with detachable reaction handle.
- Optional offset reaction arm also available on demand.
- Supplied in sturdy molded plastic carrying case for better storage and handling.

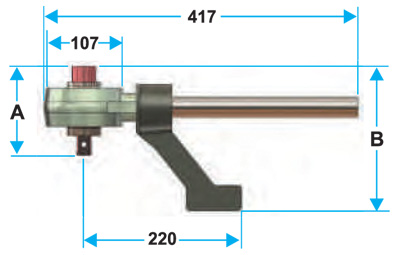

| Model No. | Capacity | Ratio | Sq. Drive (inch) | A | B | Weight (Kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Kgm. | Lb.ft. | Nm. | Input | Output | mm | mm | Without Box | With Box | ||
| NANO-13 | 132 | 962 | 1300 | 5:1 | 1.1/2 | 3.1/4 | 105 | 115 | 4.4 | 5.4 |
| NANO-17 | 170 | 1250 | 1700 | 5:1 | 1/2 | 3/4 | 107 | 115 | 4.4 | 5.4 |
| NANO-28 | 280 | 2033 | 2750 | 5:1 | 3/4 | 1 | 107 | 126 | 4.7 | 5.7 |
