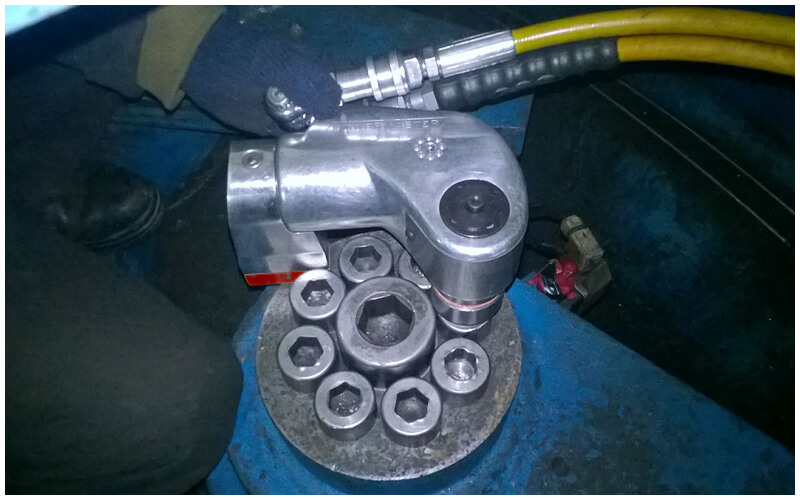

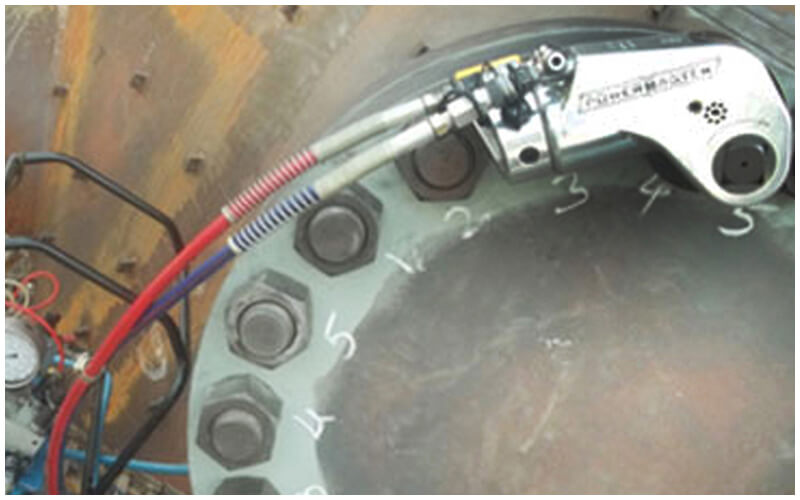

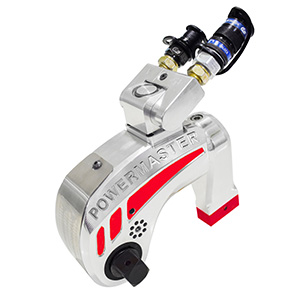

PSD Series
Technical Data
| Model No. | PSD-0.75 | PSD-1 | PSD-2 | PSD-3 | PSD-5 | PSD-7 | PSD-11 | PSD-15 | PSD-20 | PSD-27 | PSD-60 | PSD-100 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Square
Drive |
3/4” | 3/4” | 3/4” | 1” | 1.1/2” | 1.1/2” | 1.1/2” | 2.1/2” | 2.1/2” | 2.1/2” | 2.1/2” | 3.1/2” |
| Min. Torque Kg-m (Ft/Lbs) |
10 (72) |
13 (94) |
18 (132) |
45 (330) |
78 (565) |
102 (740) |
162 (1,174) |
204 (1,475) |
268 (1,940) |
375 (2,720) |
802 (5,800) |
1390 (10,053) |
| Max. Torque Kg-m (Ft/Lbs) |
106 (766) |
126 (911) |
183 (1,325) |
460 (3,330) |
774 (5600) |
1020 (7,400) |
1612 (11,659) |
2040 (14,755) |
2852 (20,625) |
3762 (27,200) |
8020 (58,000) |
13900 100,538) |
| Output Accuracy | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% |
| Repeatability | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% |
| Duty Cycle | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% |
| Tool Weight Kg/(Lbs) |
1.0 / (2.20) |
1.25 / (2.75) |
2.50 / (5.80) | 4.20/ (9.30) |
8.40 / (18.60) |
8.90 / (19.60) |
13.6 / (30.00) |
22.0 / (48.50) | 28.5 / (62.70) |
32.7 / (72.00) |
60.8 / (133.70) |
109 / (240.00) |
PSD Series Specifications

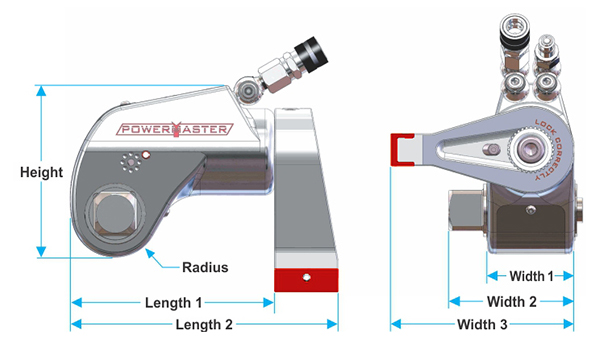

Dimensions
| Model
No. |
PSD-0.75 | PSD-1 | PSD-2 | PSD-3 | PSD-5 | PSD-7 | PSD-11 | PSD-15 | PSD-20 | PSD-27 | PSD-60 | PSD-100 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | |
| Height | 78 | 3 | 88 | 3.5 | 105 | 4.15 | 135 | 5.3 | 163 | 6.4 | 182 | 7.17 | 198 | 7.81 | 232 | 9.15 | 237 | 9.35 | 259 | 10.2 | 292 | 11.5 | 349 | 13.7 |
| Length1 | 120 | 4.75 | 94 | 3.7 | 121 | 4.76 | 153 | 6.02 | 194 | 7.62 | 208 | 8.2 | 227 | 8.95 | 295 | 11.6 | 274 | 10.8 | 294 | 11.6 | 367 | 14.5 | 469 | 18.5 |
| Length2 | 91.5 | 3.6 | 123 | 4.8 | 160 | 6.3 | 213 | 8.38 | 254 | 10 | 291 | 11.5 | 313 | 12.3 | 373 | 14.7 | 390 | 15.3 | 415 | 16.4 | 522 | 20.6 | 619 | 24.4 |
| Radius | 18.7 | 0.74 | 20 | 0.78 | 25 | 0.98 | 33 | 1.28 | 41 | 1.62 | 45 | 1.78 | 50 | 1.96 | 58.7 | 2.3 | 58 | 2.29 | 63 | 2.46 | 79 | 3.1 | 95 | 3.74 |
| Width 1 | 40 | 1.57 | 42 | 1.65 | 51 | 2.01 | 67 | 2.64 | 82 | 3.22 | 92 | 3.61 | 100 | 3.94 | 100 | 3.93 | 124 | 4.86 | 134 | 5.28 | 167 | 6.58 | 200 | 7.87 |
| Width 2 | 52.6 | 2 | 65 | 2.55 | 72 | 2.81 | 93 | 3.67 | 116 | 4.55 | 128 | 5.05 | 137 | 5.38 | 158 | 6.2 | 183 | 7.19 | 194 | 7.65 | 226 | 8.9 | 260 | 10.3 |
| Width 3 | 86.7 | 3.4 | 87 | 3.43 | 118 | 4.63 | 149 | 5.85 | 175 | 6.89 | 204 | 8.03 | 225 | 8.86 | 252 | 9.93 | 275 | 10.8 | 293 | 11.5 | 372 | 14.6 | 412 | 16.2 |
