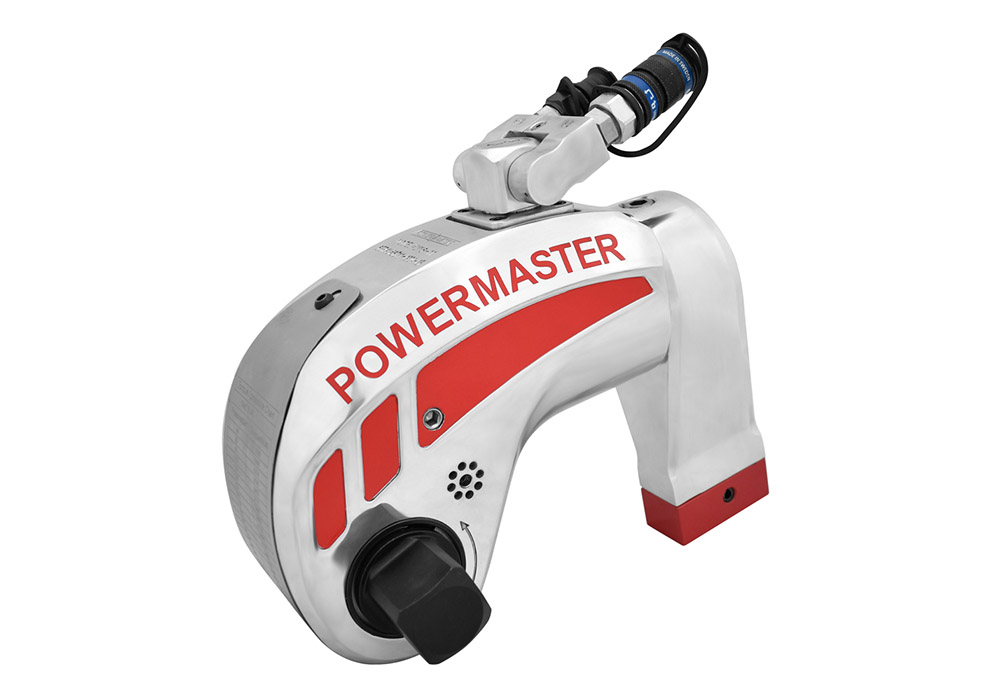

PSD-Uniswivel Series
Technical Data
| Model No. | UNS-2 | UNS-3 | UNS-5 | UNS-7 | UNS-11 |
|---|---|---|---|---|---|
| Square Drive | 3/4” | 1” | 1.1/2” | 1.1/2” | 1.1/2” |
| Min. Torque Kg-m (Ft/Lbs) |
18 (132) | 45 (330) | 77 (560) | 102 (740) | 162 (1,174) |
| Max. Torque Kg-m (Ft/Lbs) |
183 (1,325) | 460 (3,330) | 770 (5,600) | 1,020 (7,400) | 1612 (11,659) |
| Output Accuracy | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% |
| Repeatability | 100% | 100% | 100% | 100% | 100% |
| Duty Cycle | 100% | 100% | 100% | 100% | 100% |
| Tool Weight Kg / Lbs |
1.80 / (3.96) | 4.16 / (9.17) | 8.90 / (19.60) | 9.40 / (20.70) | 14.00 / (30.80) |

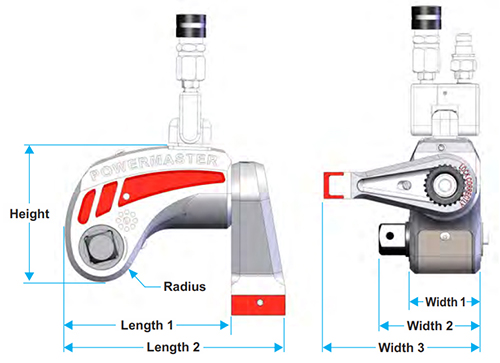

Dimensions
| Model
No. |
UNS -2 | UNS -3 | UNS -5 | UNS -7 | UNS-11 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | |
| Height | 102.00 | 4.01 | 129.00 | 5.07 | 160.00 | 6.30 | 179.00 | 7.04 | 195.00 | 7.67 |
| Length1 | 121.00 | 4.76 | 153.00 | 6.02 | 194.00 | 7.62 | 208.00 | 8.20 | 227.00 | 8.95 |
| Length2 | 160.00 | 6.30 | 213.00 | 8.38 | 254.00 | 10.00 | 291.00 | 11.50 | 313.00 | 12.30 |
| Radius | 25.00 | 0.98 | 33.00 | 1.28 | 41.00 | 1.62 | 45.00 | 1.78 | 50.00 | 1.96 |
| Width1 | 51.00 | 2.01 | 67.00 | 2.64 | 82.00 | 3.22 | 92.00 | 3.61 | 100.00 | 3.94 |
| Width2 | 72.00 | 2.81 | 93.00 | 3.67 | 116.00 | 4.55 | 128.00 | 5.05 | 137.00 | 5.38 |
| Width3 | 118.00 | 4.63 | 149.00 | 5.85 | 175.00 | 6.89 | 204.00 | 8.03 | 225.00 | 8.86 |
Note : All tool weights include Couplers, Swivels, Reaction Arm and Internal Oil.
