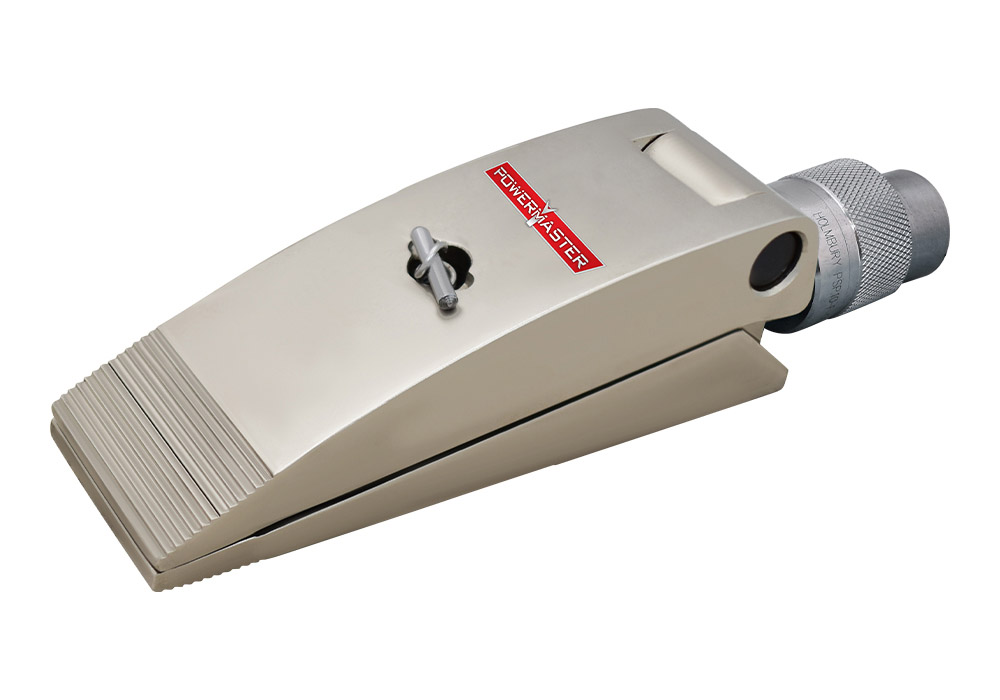

Hydraulic Flange Spreaders HS-01

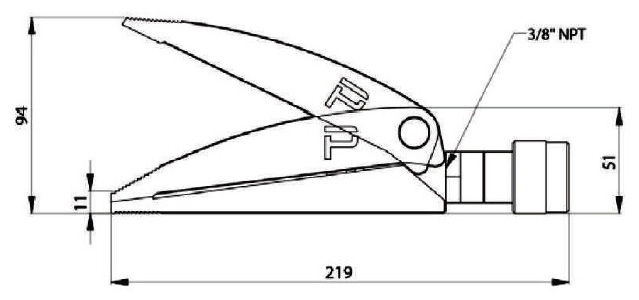

The HS-01 Hydraulic Spreader is designed for use in restricted work environments, requiring a minimum clearance of 0.4 inches (11 mm). For situations requiring a compact hydraulic wedge spreader suitable for confined areas, the HS-01 represents the ideal selection. This single acting device harnesses robust hydraulic power to achieve an expansion of up to 3.7 inches (94mm) and features a spring return mechanism for retraction. It has a maximum load capacity of 1 ton (8.9 kN), and it is essential to restrict the maximum system pressure to half of the rated pressure.
| Model No. | Spreader Capacity | Tip Clearance | Maximum Spread | Cylinder Effective Area | Oil Capacity | Weight | |
|---|---|---|---|---|---|---|---|
| ton | inch | inch | inch2 | inch3 | kg | lbs | |
| HS-01 | 1.00 | 0.40 | 3.70 | 1.00 | 0.61 | 2.27 | 5.0 |
