Mechanical Flange Spreaders PMF Series
The PMF range features six models, providing flexible options to meet various flange opening requirements with a safe, spark-free operation.
Features
- Safe and cost-effective operation: Each model is designed to ensure safe flange separation, reducing operational costs while eliminating the risk of sparks during use.
- Threaded spindle for precise control: The spindle can be easily operated with a standard spanner, allowing users to apply controlled and consistent force without risking damage to the flange.
- Supports flanges up to 2 x 95 mm thickness: Designed to handle heavy-duty applications with flanges of significant thickness for versatile usage.
- No external power required: These mechanical flange spreaders operate without the need for external power sources, making them highly versatile and suitable for use in any on-site environment.
- Portable and Ergonomic design: These flange spreaders are easy to transport and can be used in a wide range of industrial settings.
Special Features
- Tool is compatible with bolt diameter upto 31 mm.
- Offers a maximum spread of 231 mm.
- No external power source needed for operation.

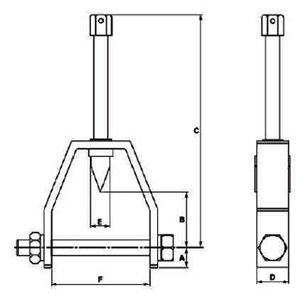

| Model No. | Pin Diameter | Min Flange Bolt Hole | Max Flange Thickness | Dimensions In mm | Weight | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | Diameter | mm | inch | A | B (max) | C (min) | C (max) | D | E | F | Kg. | ||
| PMF16 | 16 | 5/8" | 17 | 2X22 | 2X7/8" | 25 | 28 | 185 | 232 | 40 | 25 | 70 | 2.2 | |
| PMF19 | 19 | 3/4" | 20 | 2X35 | 2X1-3/8" | 30 | 50 | 185 | 254 | 50 | 25 | 95 | 2.7 | |
| PMF22 | 22 | 7/8" | 23 | 2X47 | 2X1-13/16" | 30 | 50 | 247 | 318 | 50 | 30 | 124 | 4.1 | |
| PMF25 | 25 | 1" | 26 | 2X62 | 2X2-7/16" | 30 | 85 | 247 | 353 | 50 | 30 | 155 | 6.4 | |
| PMF28 | 28 | 1-1/8" | 29 | 2X70 | 2X2-3/4" | 30 | 80 | 275 | 382 | 60 | 40 | 181 | 8.2 | |
| PMF31 | 31 | 1-1/4" | 32 | 2X95 | 2X3-3/4" | 32 | 84 | 275 | 385 | 60 | 40 | 231 | 9.6 | |
