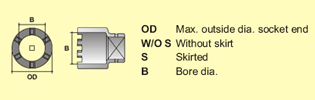

Castellated Sockets

  • Castellated Sockets

  • Castellated Sockets

FRACTIONAL 1” SQ. DRIVE

NOMINAL
SIZE		 MODEL
NO.		 OD
inch		 OAL (W/OS)
inch		 OAL (S)
inch		 B
inch
1.1/4
1.3/8
1.1/2		 CS1620
CS1622
CS1624		 2.1/4
2.3/4
2.3/4		 2
2
2		 3.1/2
3.3/4
4		 1.1/8
1.1/4
1.3/8
1.3/4
2
2.1/4		 CS1628
CS1632
CS1636		 3
3.1/8
3.1/2		 2.1/8
2.1/8
2.1/4		 4.1/8
4.1/8
4.3/4		 1.5/8
1.7/8
2.1/8
2.1/2
2.3/4
3		 CS1640
CS1644
CS1648		 3.7/8
4.1/4
4.5/8		 2.1/4
2.1/2
2.1/2		 4.3/4
5.3/8
5.3/8		 2.3/8
2.5/8
2.7/8
3.1/2
4
4.1/2		 CS1656
CS1664
CS1672		 5.3/8
6.1/8
6.7/8		 2.3/4
2.3/4
3		 6.3/8
6.7/8
7.5/8		 3.3/8
3.7/8
4.3/8

FRACTIONAL 1.1/2” SQ. DRIVE

NOMINAL
SIZE		 MODEL
NO.		 OD
inch		 OAL (W/OS)
inch		 OAL (S)
inch		 B
inch
2.1/4
2.1/2
2.3/4		 CS2436
CS2440
CS2444		 3.1/2
3.7/8
4.1/4		 2.3/8
2.3/8
2.5/8		 4.1/8
4.1/8
5.1/2		 2.1/8
2.3/8
2.5/8
3
3.1/2
4		 CS2448
CS2456
CS2464		 4.5/8
5.3/8
6.1/8		 2.5/8
2.7/8
2.7/8		 5.1/2
6.1/2
7		 2.7/8
3.3/8
3.7/8
4.1/2
5
5.1/2		 CS2472
CS2480
CS2488		 6.7/8
7.5/8
8.3/8		 3.1/8
3.1/8
3.3/8		 7.3/4
7.7/8
8.7/8		 4.3/8
4.7/8
5.3/8
6
6.1/2
7		 CS2496
CS24104
CS24112		 9.1/4
10
10.5/8		 3.3/8
3.1/2
3.1/2		 9.3/8
9.1/2
10.3/8		 5.7/8
6.3/8
6.7/8

FRACTIONAL 2.1/2” SQ. DRIVE

NOMINAL
inch		 MODEL
NO.		 OD
inch		 OAL (W/OS)
inch		 OAL (S)
inch		 B
inch
2.3/4
3
3.1/2		 CS40044
CS40048
CS40056		 4.1/4
4.5/8
5.3/8		 3.1/4
3.1/4
3.1/2		 6.1/8
6.1/8
7.1/8		 2.5/8
2.7/8
3.3/8
4
4.1/2
5		 CS40064
CS40072
CS40080		 6.1/8
6.7/8
7.5/8		 3.1/2
3.3/4
3.3/4		 7.5/8
8.3/8
8.1/2		 3.7/8
4.3/8
4.7/8
5.1/2
6		 CS40088
CS40096		 8.3/8
9.1/4		 4
4		 9.1/2
10		 5.3/8
5.7/8
6.1/2
7		 CS40104
CS40112		 10
10.5/8		 4.1/8
4.1/8		 10.1/2
11		 6.3/8
6.7/8

FRACTIONAL 3.1/2” SQ. DRIVE

NOMINAL
inch		 MODEL
NO.		 OD
inch		 OAL (W/OS)
inch		 OAL (S)
inch		 B
inch
4.1/2
5
5.1/2		 CS56072
CS56080
CS56088		 6.7/8
7.5/8
8.3/8		 5
5
5.1/4		 9.5/8
9.3/4
10.3/4		 4.3/8
4.7/8
5.3/8
6
6.1/2
7		 CS56096
CS26104
CS56112		 9.1/4
10
10.5/8		 5.1/4
5.5/8
5.5/8		 11
11.1/2
12		 5.7/8
6.3/8
6.7/8
