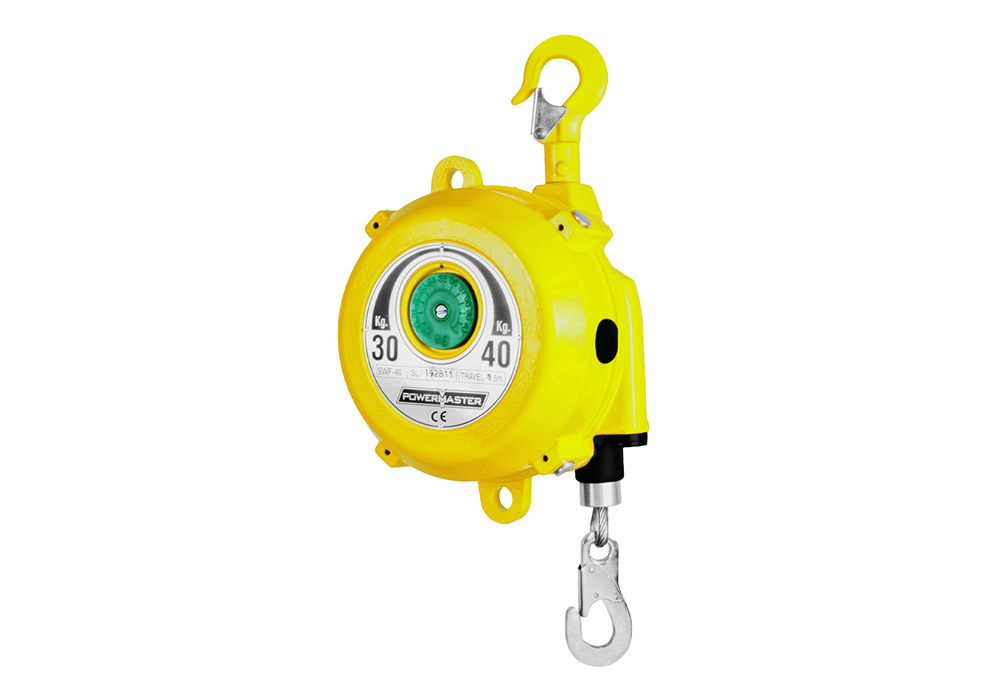

Spring Balancers SWF Series
SWF series balancers are now fully enclosed & are provisioned with a body liner to prevent damage to body.
| Capacity | Model No. | Travel | Weight | Capacity | Model No. | Travel | Weight |
|---|---|---|---|---|---|---|---|
| kg | meter | kg. | kg. | meter | kg. | ||
| 0.5 - 1.5 | SWF - 01 | 1.0 | 1.0 | - | - | - | - |
| 1.0 - 2.0 | SWF - 02 | 1.0 | 1.0 | - | - | - | - |
| 1.5 - 3.0 | SWF - 03 | 1.3 | 1.8 | 1.5 - 3.0 | SWF - 03L | 2.5 | 4.2 |
| 2.5 - 5.0 | SWF - 05 | 1.3 | 1.9 | 2.5 - 5.0 | SWF - 05L | 2.5 | 4.4 |
| 4.5 - 9.0 | SWF - 09 | 1.3 | 4.0 | 4.5 - 9.0 | SWF - 09L | 2.3 | 8.0 |
| 9.0 - 15.0 | SWF - 15 | 1.3 | 4.0 | 9.0 - 15.0 | SWF - 15L | 2.3 | 8.0 |
| 15.0 - 22.0 | SWF - 22 | 1.5 | 8.0 | 15-0 - 22.0 | SWF - 22L | 2.3 | 8.5 |
| 22.0 - 30.0 | SWF - 30 | 1.5 | 9.0 | 22.0 - 30.0 | SWF - 30L | 2.3 | 9.5 |
| 30.0 - 40.0 | SWF - 40 | 1.5 | 10.5 | 30.0 - 40.0 | SWF - 40L | 2.3 | 11.0 |
| 40.0 - 50.0 | SWF - 50 | 1.5 | 11.0 | 40.0 - 50.0 | SWF - 50L | 2.3 | 12.0 |
| 50.0 - 60.0 | SWF - 60 | 1.5 | 12.0 | 50.0 - 60.0 | SWF - 60L | 2.3 | 13.0 |
| 60.0 - 70.0 | SWF - 70 | 1.5 | 12.5 | 60.0 - 70.0 | SWF - 70L | 2.3 | 13.5 |
| 70.0 - 85.0 | SWF - 85 | 1.5 | 13.0 | 70.0 - 85.0 | SWF - 85L | 2.5 | 18.0 |
| 85.0 - 100.0 | SWF - 100 | 1.5 | 13.5 | 85.0 - 100.0 | SWF - 100L | 2.5 | 28.0 |
| 70.0 - 90.0 | SWF - 90 | 1.5 | 26.5 | - | - | - | - |
| 90.0 - 105.0 | SWF - 105 | 1.5 | 27.0 | - | - | - | - |
| 100.0 - 120.0 | SWF - 120 | 1.5 | 29.0 | 100.0 - 120.0 | SWF - 120L | 2.5 | 29.0 |
| 120.0 - 140.0 | SWF - 140 | 1.5 | 31.0 | 110.0 - 130.0 | SWF - 130L | 2.5 | 31.0 |
| 140.0 - 170.0 | SWF - 170 | 1.5 | 35.0 | - | - | - | - |
| 170.0 - 200.0 | SWF - 200 | 1.5 | 36.0 | - | - | - | - |
