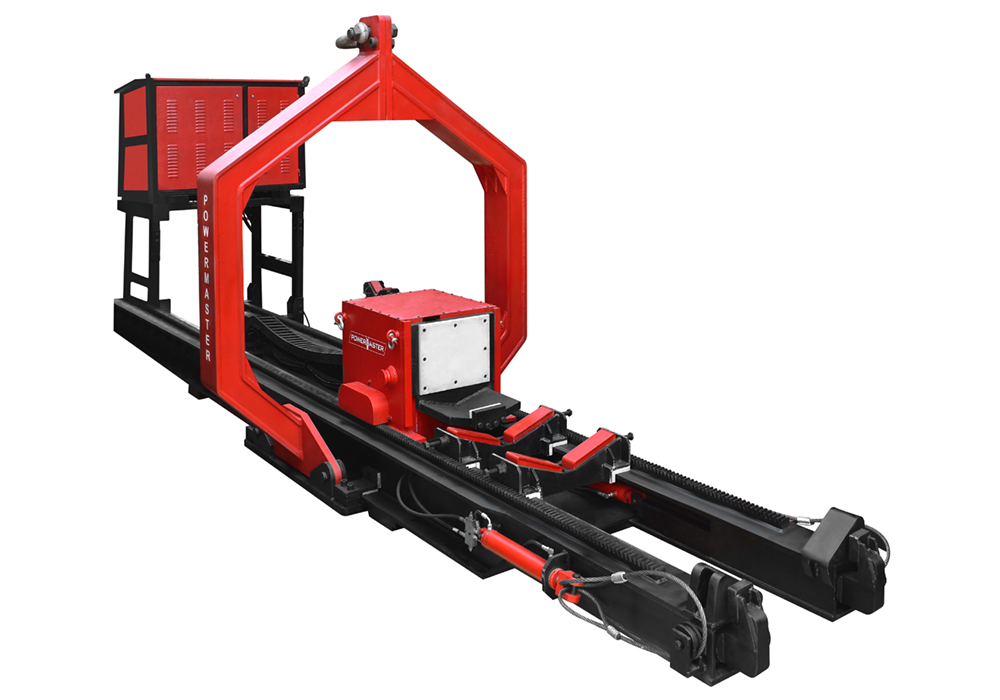

The Aerial Bundle Extractor is specially designed to remove the tube bundle from the tube sheet of heat exchangers without causing damage to the shell. It is a self-contained unit that can be easily lifted by a crane. Powered by a diesel engine, it drives the hydraulic system and can be operated via a wired or wireless remote, ensuring high accuracy and zero defects. Depending on the weight, length, and diameter of the bundle, we can offer custom-made extractors ranging from 20T to 125T capacity.

All models come equipped with rear extension pieces, providing the operator with more flexibility. You can keep the Aerial Bundle Extractor compact for confined areas or extend it for longer bundles. The rear extension pieces are easily fitted, and the relevant hydraulic hoses and energy chains are compatible with them.

Features of Aerial Bundle Extractor

  • Self-contained unit which is easily lifted by a crane.
  • Operated via a wired or wireless remote.
  • The dual hydraulic motor set-up also allows you to select the speed of the bundle-pulling process.
  • There is a selection lever on the winch, which gives mean to control the speed. The working pressure is 190 Bar.
  • All models are equipped with rear extension pieces, giving the operator more flexibility.
  • The rear extension pieces are easily fitted, and the relevant hydraulic hoses and energy chains are compatible for this.

Technical Data

ABE-020-065E ABE-025-070E ABE-045-090E ABE-060-100E ABE-085-100E ABE-110-110E
AERIAL BUNDLE EXTRACTOR MACHINE
Length mm 7300 7300/8300 9300 13000 14500 14500
Width mm 1040 1040 1240 1240 1450 1450
Height mm 2215 2215 2315 3315 3550 3550
Weight
(without bundle arch) kgs		 4800 5200 7800 7600 9800 7800
Weight
(with bundle arch) kgs		 6800 6800 10500 12500 14800 15800
Winch pull force kgs 30000 30000 60000 60000 80000 80000
Max. Extension
(front + rear if any) mm		 1000 1000 3000 3000 3000 3000
BUNDLE
Max. Length
(w/o extension if any) mm		 6000 6000/7000 8000 11500 12000 12000
Max. Bundle weight kgs 20000 25000 45000 60000 80000 110000
Max. Diameter mm 1000 1600 2000/3000 2000/3000 2500/3000 3000
