Tube Cleaning Tool 1" & UP I.D.

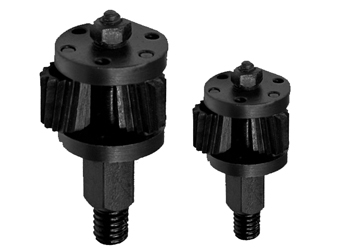

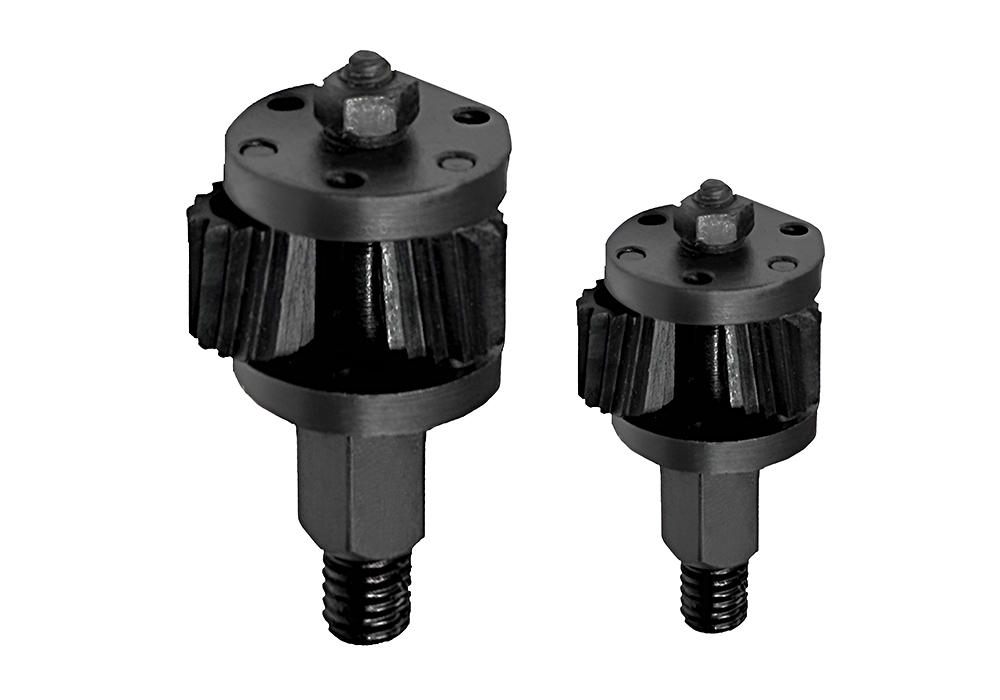

Cylinder Cutter Tools
These tools are used typically in boilers and other larger tubes that have a light to medium deposit. These tools use patented ergonomic cutting wheels that ensure the same tooth of the cutter wheel does not touch the same spot when cleaning.
This prevents grooves being formed in the tube scale. The cutters ‘fly out’ when the tool is rotated and perform cleaning action.
| Tube I.D. | Cylinder Cutter
Tool Model |
Spare Cylinder
Cutter Model |
|
|---|---|---|---|
| mm | inch | ||
| 36.5-47.6 | 1.7/16-1.7/8 | CCT-1438 | CYC-1438 |
| 46.0-54.0 | 1.13/16-2.1/8 | CCT-1813 | CYC-1438 |
| 55.5-70.0 | 2.3/16-2.3/4 | CCT-2188 | CYC-2188 |
| 79.4-98.4 | 3.1/8-3.7/8 | CCT-3125 | CYC-2188 |

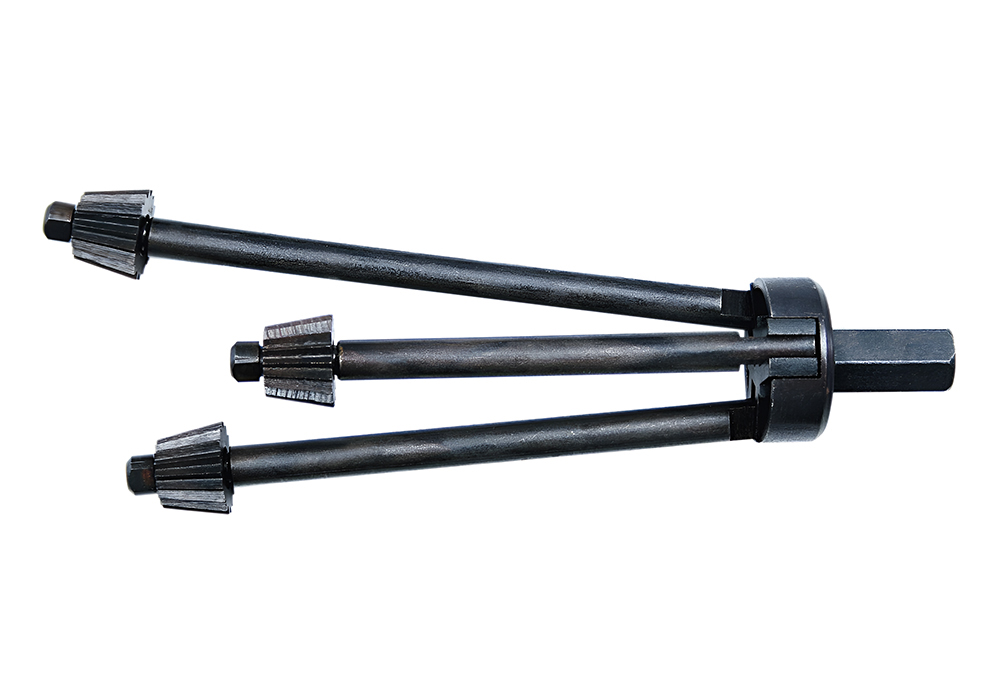

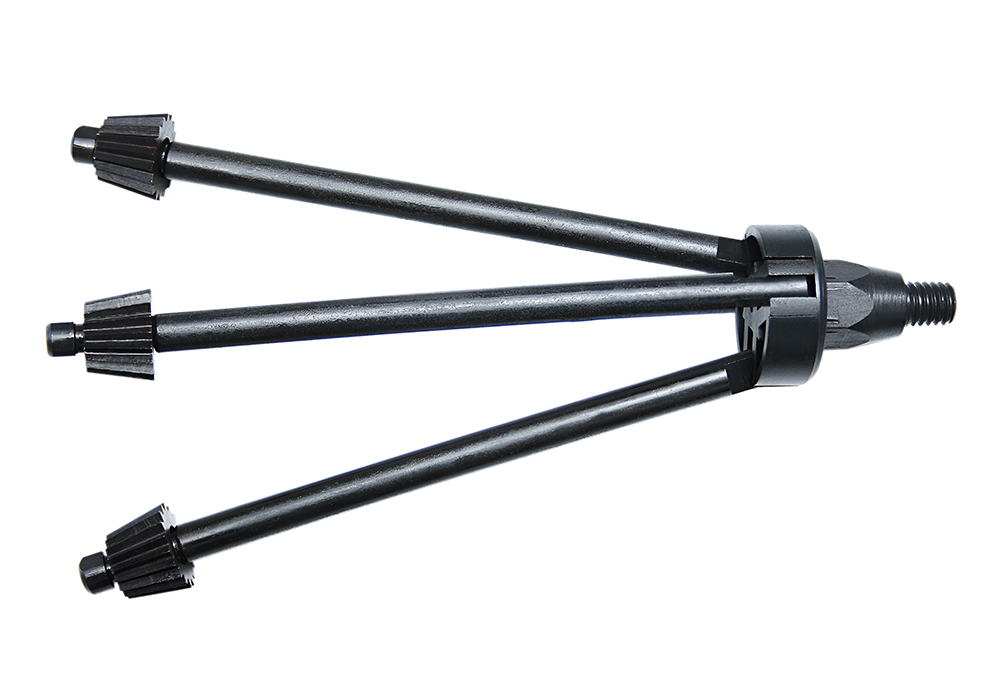

Wing Tools - Stiff Arm Cutter
tters on their ends, that spread out when rotated. These tools are used to clean light to medium deposits in large diameter tubes and pipes.
| Tube I.D. | Wing Tools-Stiff Arm
Cutter Model |
Spare Cone
Cutter Model |
|
|---|---|---|---|
| mm | inch | ||
| 42.9-101.6 | 1.11/16-4 | WTS-1688 | SCT-937 |
| 100.0-165.1 | 3.15/16-6.1/2 | WTS-3938 | SCT-937 |

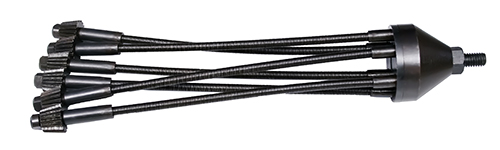

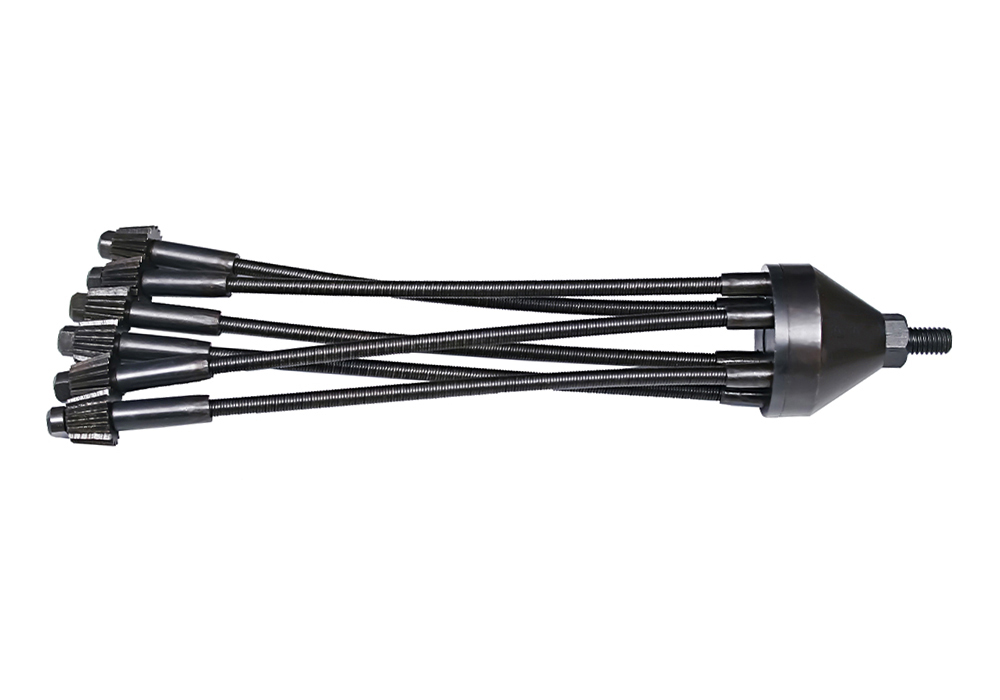

Wing Tools - Flexible Arm Cutter
These tools are similar in operation to the Stiff Arm Winged Tools, but patented Cone Cutters are attached onto flexible arms. These tools are used in typically very large vertical pipes and are used in tube cleaning pipes from top to bottom.
| Tube I.D. | Wing Tools-Flexible Arm Cutter Model |
Spare Cone Cutter Model |
|
|---|---|---|---|
| mm | inch | ||
| 100.0-309.0 | 3.15/16-12 | WTF-3938 | SCT-937 |

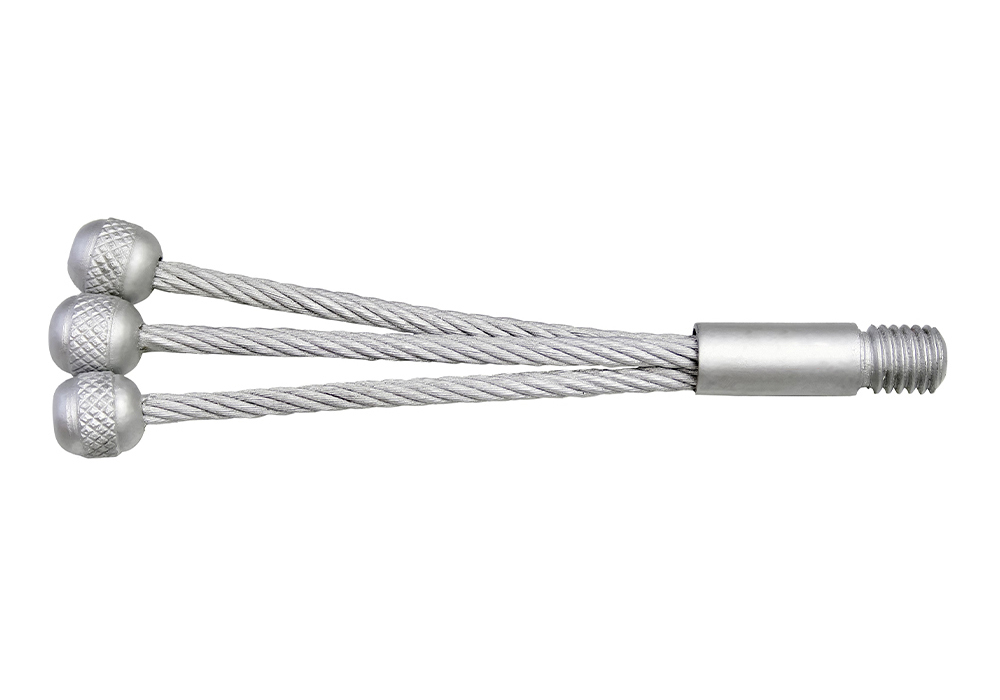

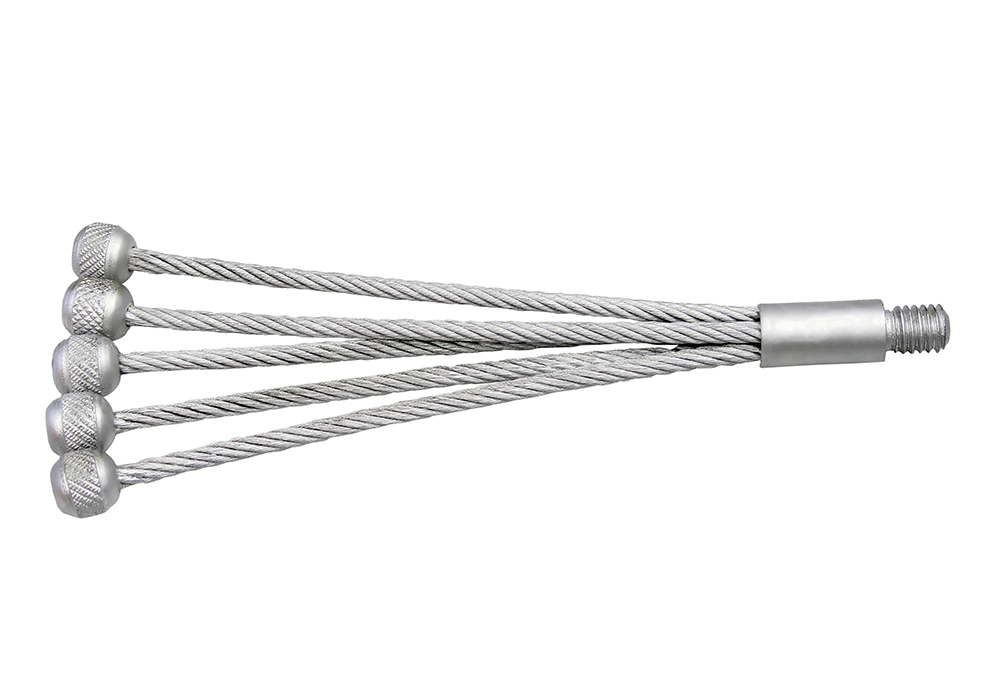

Wing Tools - Flexible Arm-Carbide Ball Tip
These tools are similar operation to the Flexible Arm Cutter Wing Tools except these use carbide balls for removing light scale in large diameter tubes and pipes.
| Tube I.D. | Wing Tools-Flexible Arm
Carbide Ball Tip Model |
Number of
Balls Used |
|
|---|---|---|---|
| mm | inch | ||
| 23.8-52.4 | 15-16-2.1/16 | WTC-938 | 4 |
| 49.2-103.2 | 1.15/16-4.1/16 | WTC-1938 | 6 |
| 100.0-204.8 | 3.15/16-8.1/16 | WTC-3938 | 6 |

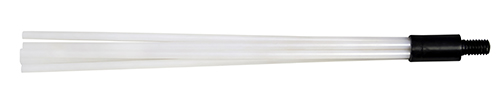

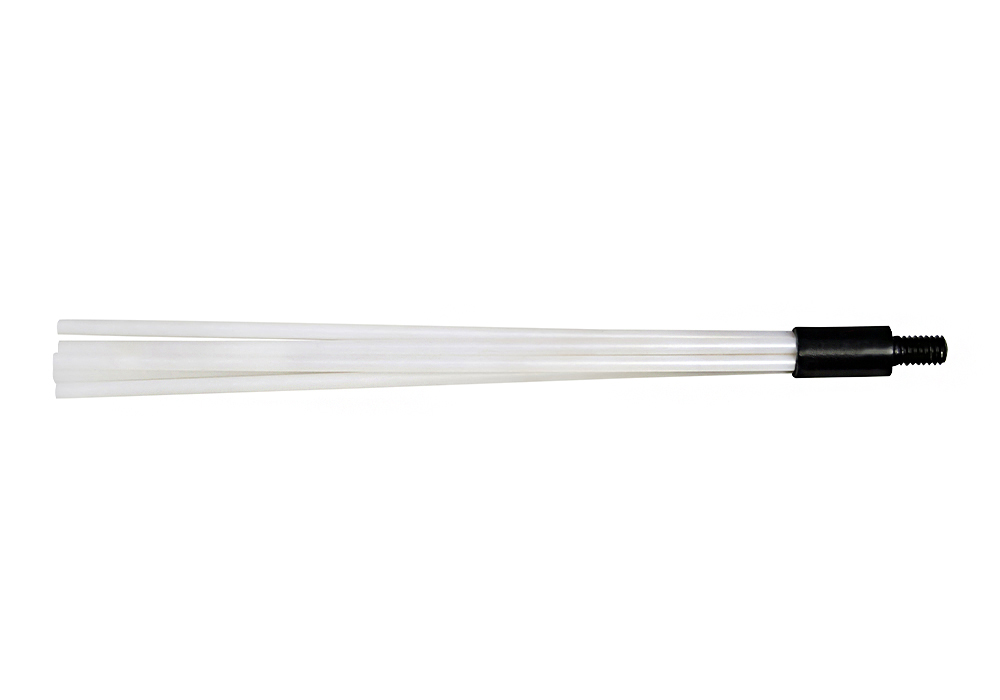

Wing Tools - Flexible Nylon Rod
These tools are fitted with abrasive nylon rods that spread out when rotated. These tools are used to clean light deposits in thin tubes and pipes of exotic materials where damage to tubes is to be avoided.
| Tube I.D. | Wing Tools-Flexible Nylon Rod Model |
|
|---|---|---|
| mm | inch | |
| 49.2-431.8 | 1.15/16-17 | WTN-1938 |
