Electric Drives for use with Torque Controllers

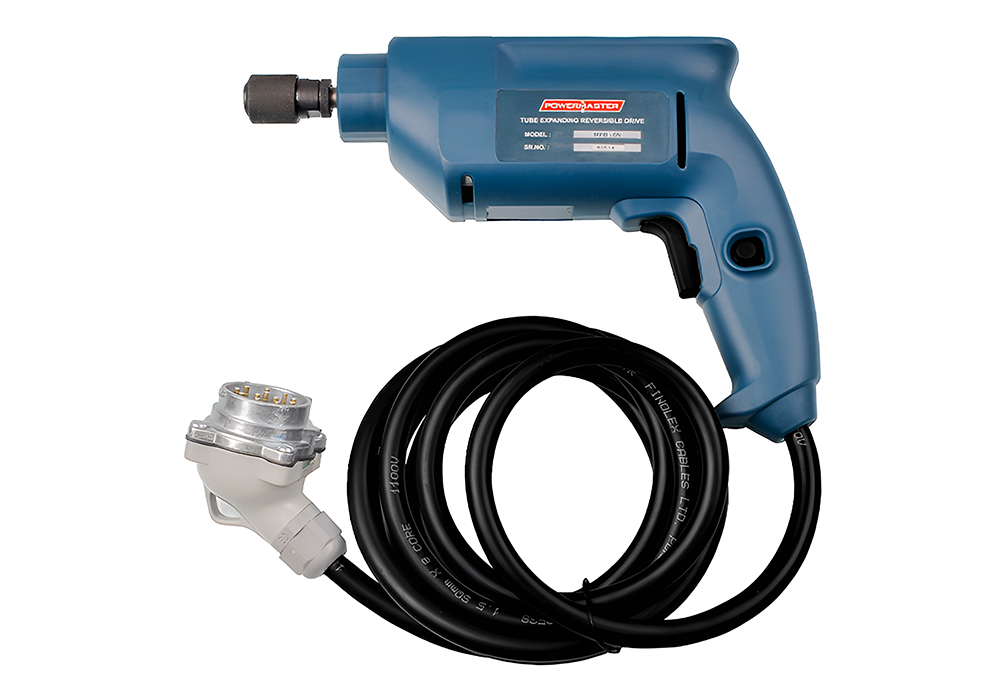

MPB-0

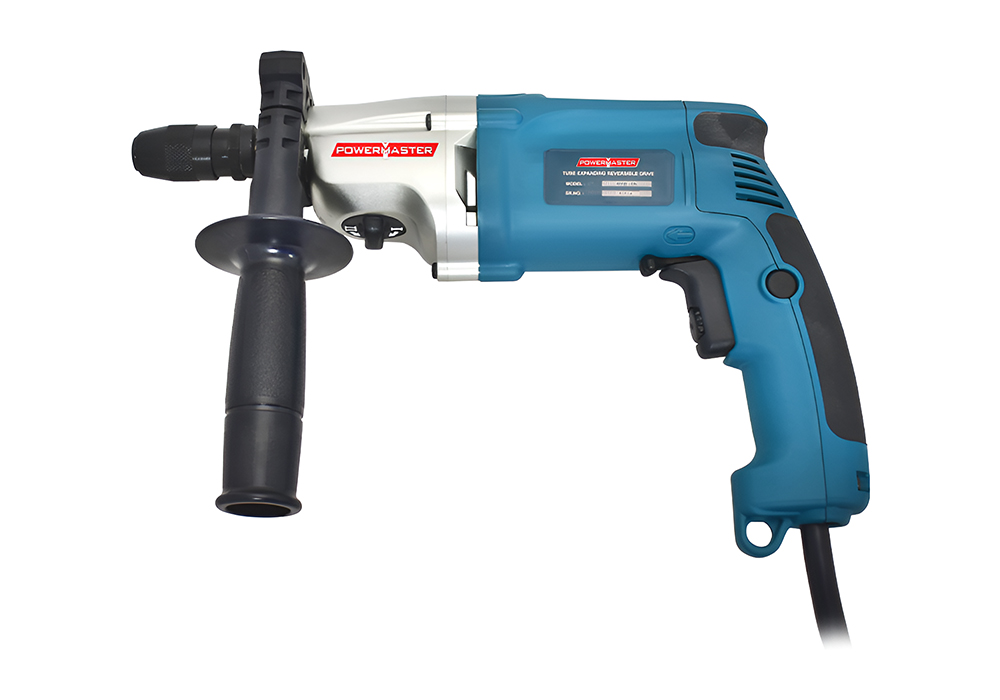

MPB-1
MPB-2

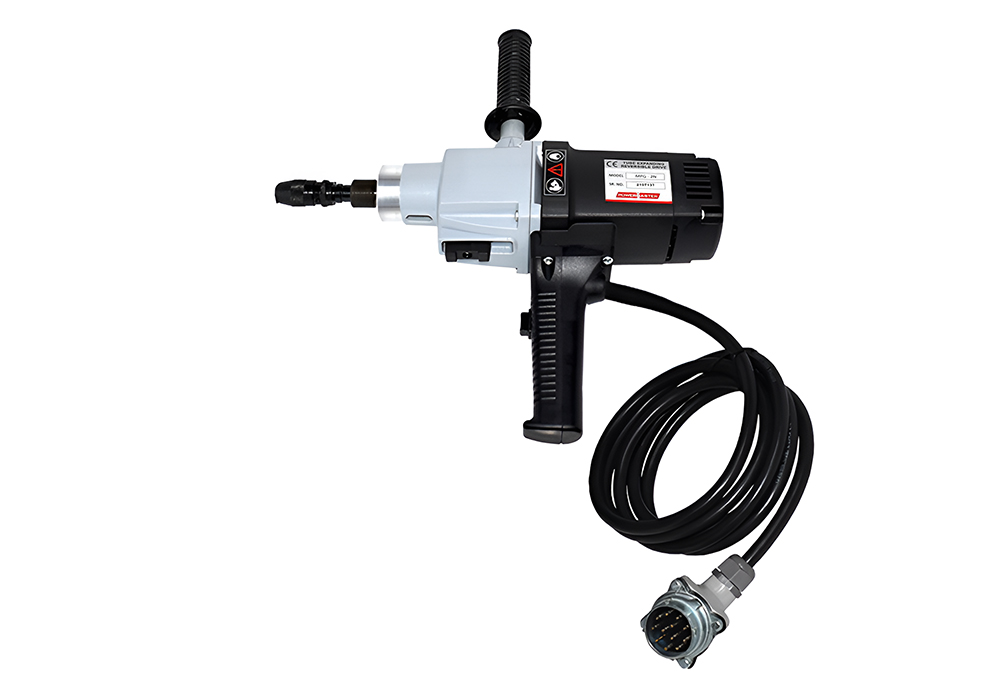

MPB-3
Features
- Heavy duty motors from Germany, form the heart of these drives.
- Continuous cycle operation vs. Intermittent cycle operation of drives from other manufactures.
- Worldwide spare parts and service availability.
- High torque to weight ratio.
Specifications
| Supply Voltage
Single Phase 50/60 Hz |
Drive Model | Speed I / II |
No Load R.P.M. |
Expansion Range | Drive Weight Kgs. | |||
|---|---|---|---|---|---|---|---|---|
| Steel Tube O.D. | Copper Tube O.D. | |||||||
| inch | mm | inch | mm | |||||
| 230 V | MPB - 0N | I | 2200 | 1/4” - 3/8” | 6 - 10 | 1/4” - 1/2” | 6 - 12 | 2 |
| MPB - 1N | I | 1000 | 3/8” - 5/8” | 10 - 16 | 3/8” - 3/4” | 13 - 20 | 2.5 | |
| II | 1900 | 5/16” - 3/8” | 8 - 13 | 5/16” - 1/2” | 8 - 13 | |||
| MPG - 2N | I | 480 | 5/8”-1.3/4” | 16 - 45 | 5/8” - 2” | 16 - 50 | 7.5 | |
| II | 1080 | 5/8”-1.1/4” | 16 - 32 | 5/8”-1.1/2” | 16 - 38 | |||
| MPG - 3N | I | 130 | 1” - 3” | 25 - 76 | 1” - 4” | 25 - 102 | 8.5 | |
| II | 430 | 1” - 2” | 25 - 50 | 1” - 3” | 25 - 76 | |||
| 110 V | MPB - 0L | I | 2200 | 1/4” - 3/8” | 6 - 10 | 1/4” - 1/2” | 6 - 12 | 2 |
| MPB - 1L | I | 1000 | 3/8” - 5/8” | 10 - 16 | 3/8” - 3/4” | 13 - 20 | 2.5 | |
| II | 1900 | 5/16” - 3/8” | 8 - 13 | 5/16” - 1/2” | 8 - 13 | |||
| MPG - 2L | I | 480 | 5/8”-1.3/4” | 16 - 45 | 5/8” - 2” | 16 - 50 | 7.5 | |
| II | 1080 | 5/8”-1.1/4” | 16 - 32 | 5/8”-1.1/2” | 16 - 38 | |||
| MPG - 3L | I | 130 | 1” - 3” | 25 - 76 | 1” - 4” | 25 - 102 | 8.5 | |
| II | 430 | 1” - 2” | 25 - 50 | 1” - 3” | 25 - 76 | |||
