Right Angle Rolling Drives

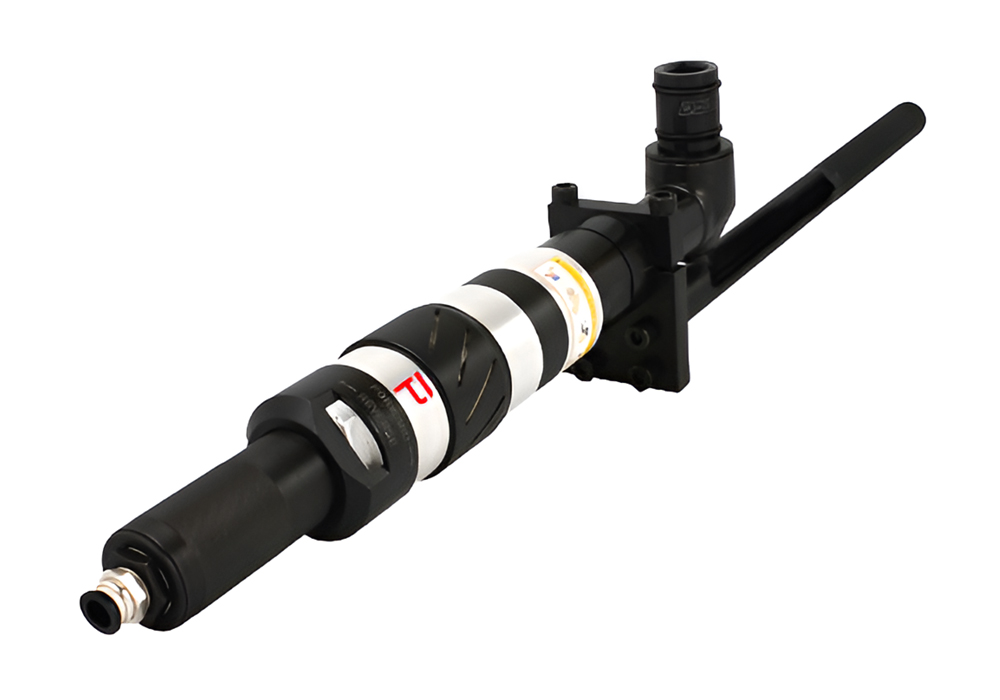

Roll Throttle Type

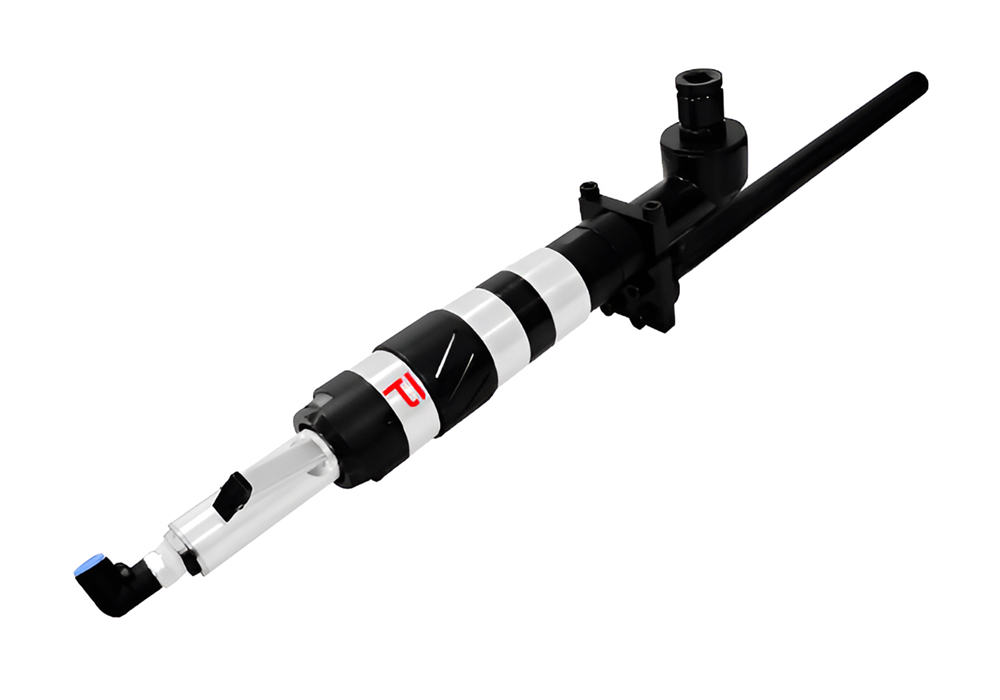

Lever Throttle Type
Right Angle Rolling Drives are specifically designed for expanding boiler tubes in steam, mud drums, fire tube & related boiler equipment.
Features of Right Angle Rolling Drive
- Unique head design consisting of fully enclosed bearing for long & trouble free life.
- Both models equipped with roll throttle as standard. Lever throttle optional.
- Easy adjustable torque.
- Angle head can be setup in numerous positions.
- 360 degree adjustable air exhaust.
| Model Number | Free Speed rpm |
Min Torque Nm |
Max Torque Nm |
Tube Capacity inch | Square Drive inch |
Weight kg |
|---|---|---|---|---|---|---|
| P72-RT-190 | 190 | 95 | 190 | 2.5 | 5/8 | 5.80 |
| P72-RT-90 | 90 | 200 | 410 | 4 | 3/4 | 6.70 |
