Battery Operated Tube End Facing Machines - FM1625

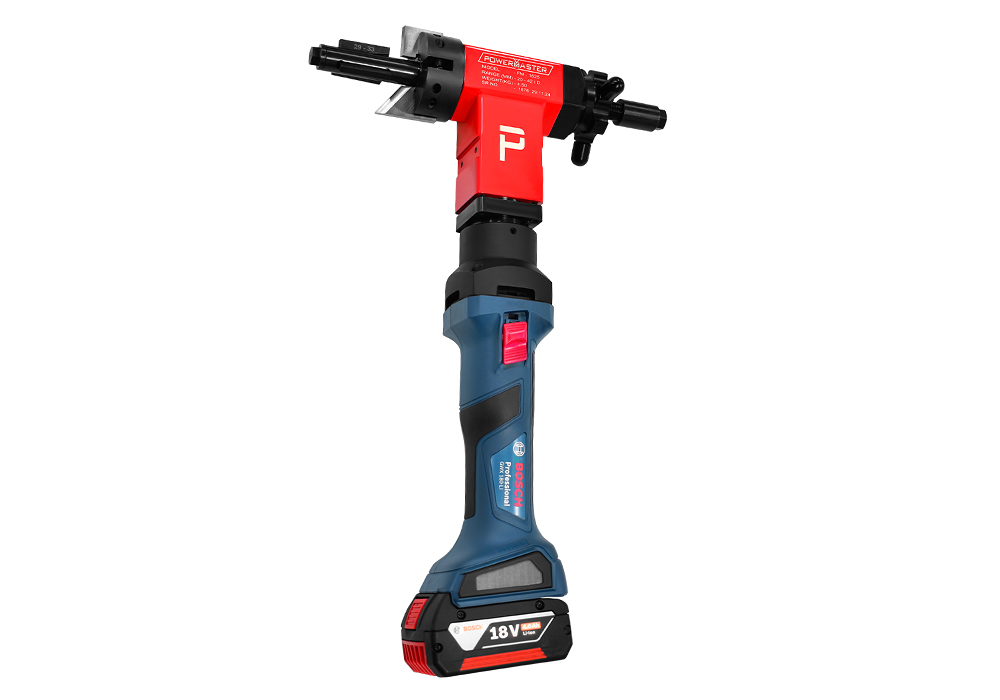

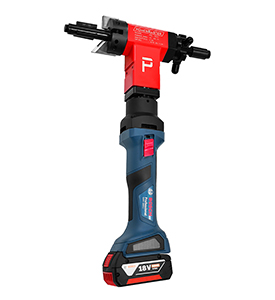

FM-1625 - Battery Operated

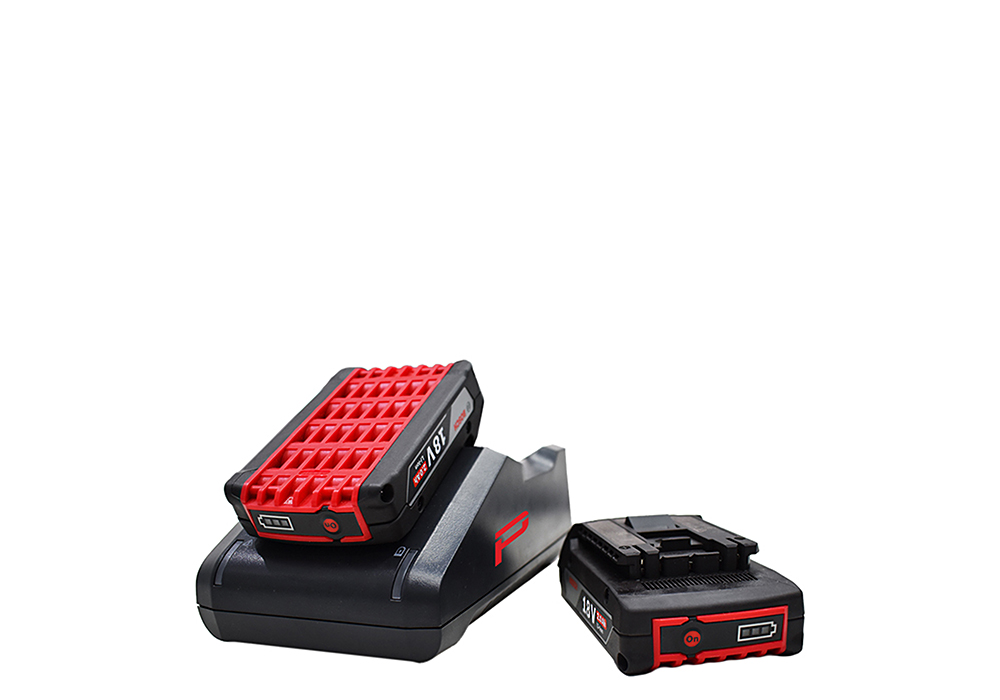

Li-ion Battery with charger

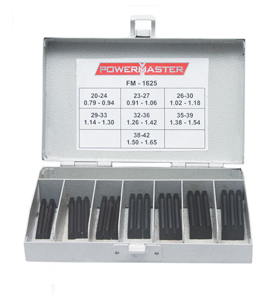

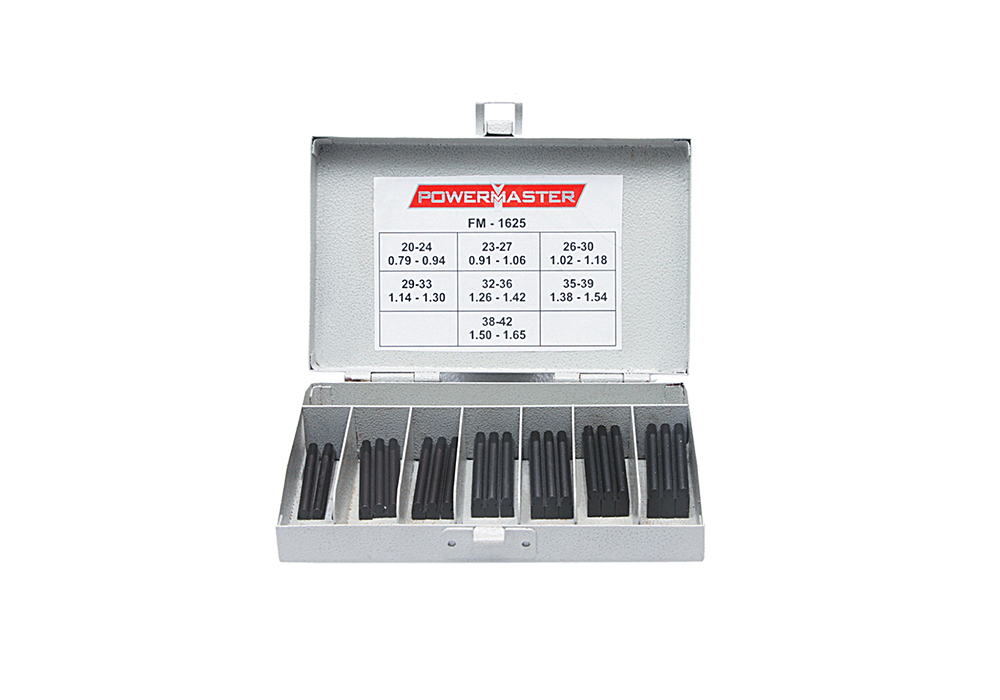

FM-1625 - Jaw Set

Features:

  • High pressure cast aluminum body allows continuous operation under the harshest conditions.
  • Holds the cutting tool bits tightly at the desired position. Its robust construction and support to the cutting bits ensure vibration free performance.
  • Precise machined and hardened feed shaft provides a strong support to the assembly which slides over it.
  • Wedge style hardened tool steel jaws for maximum life and secure positioning. Available within the locking range of 20mm to 42mm.
  • Expanding mandrel allows fast, accurate and self-centering alignment with torque-free operation for operator safety.
  • Highly accurately machined for positive power transmission with less noise and no wear and tear.
  • High-Efficiency Brushless Motor.
  • 18V Battery that provides extended run-time.

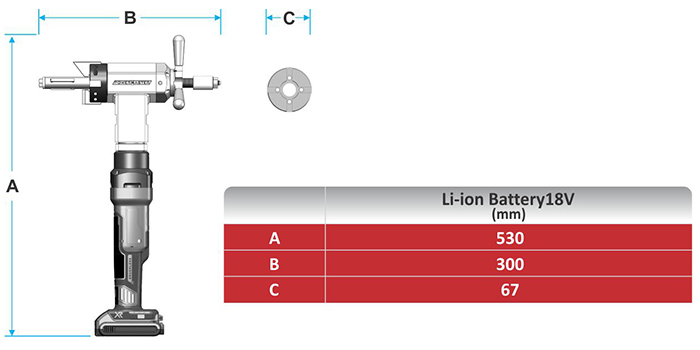

Technical Specification:

Drive   FM-1625
Locking Range mm (inch) 20 - 42 (3/4" - 1.5/8")
Ideal Speed RPM 235
Torque Nm lbf.ft 29 (21.38)
Feeding Stroke mm (inch) 23 (7/8")
Li-ion Battery V 18
Net Weight kg (lb) 5.5 (12.12)
