Tube End Facing Machines Pipe Beveller - 18000
Features of Tube End Facing Machine - FM-18000
- Central Mandrel: Expanding mandrel allows fast, accurate and self-centering alignment with torque-free operation for operator safety.
- Tool Holder: Holds the Cutting tool bits tightly at the desired position. Its robust construction and support to the cutting bits ensure vibration free performance.
- Feed Shaft: High strength, precise machined and hardened feed shaft provides powerful feeding to the assembly which slides over it.

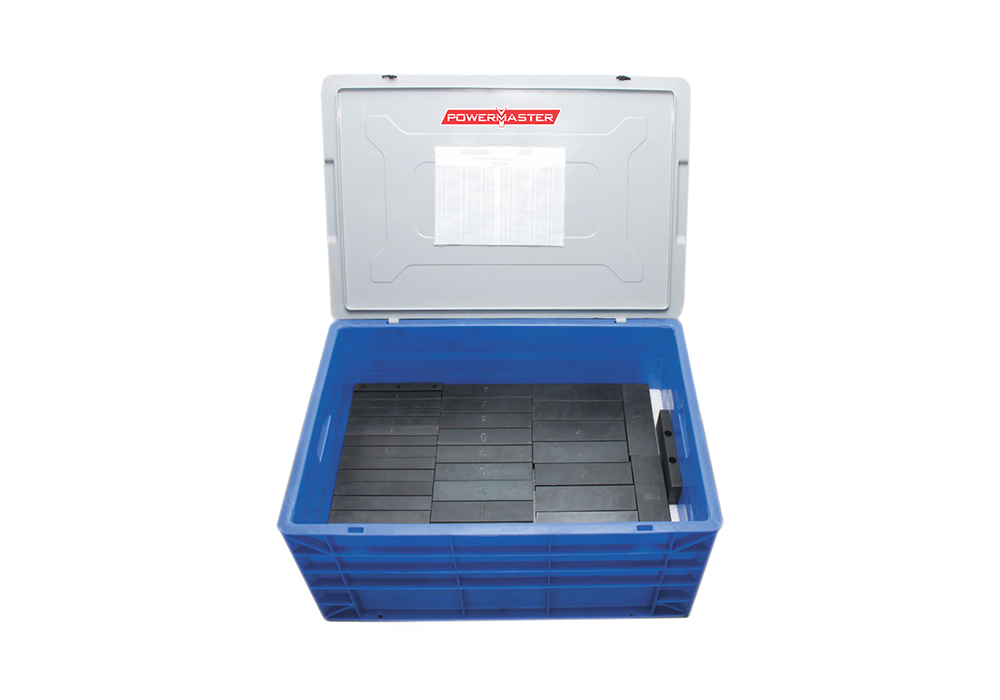

- Jaw: Wedge type hardened toot steel mounted jaws for maximum life and secure positioning, Available within the locking range 102mm to 457mm.
- Body: Light weight, high pressure cast aluminium body allows continuous operation under the harshest conditions.

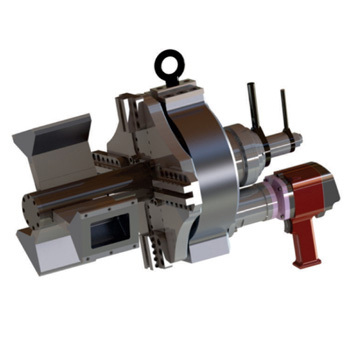

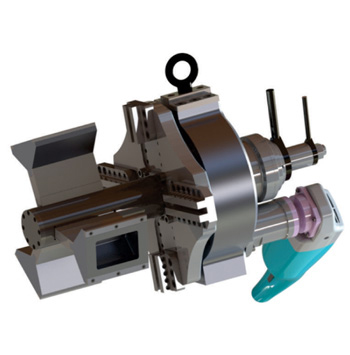

- Pneumatic or Electric Drive: High quality pneumatic or electric drive for reliable service and long working life.
The FM-18000 is a combination of power and range in a light and portable design. Rugged and balanced machine suitable for tubes and pipes in the size range of 102mm to 457mm in internal diameter. It is new generation heavy duty facing and bevelling machine design for Piping industries.
| Drive | Pneumatic | Electric |
|---|---|---|
| Locking Range mm (inch) | 102 - 457 (4”- 18”) | 102 - 457 (4”- 18”) |
| Ideal Speed RPM | 13 | 15 |
| Torque Nm (lbf.ft) | 1266 (933) | 1182 (871) |
| Feeding Stroke mm (inch) | 60 (2.36”) | 60 (2.36”) |
| Pneumatic Power HP | 2.6 | - |
| Air Consumption cfm | 85 | - |
| Air Pressure Bar (psi) | 6.2 (90) | - |
| Electric Power watts | - | 2000 |
| Voltage V | - | 230 |
| Net Weight kg (lb) | 90 (198) | 90 (198) |
