Tube End Facing Machines - 12000

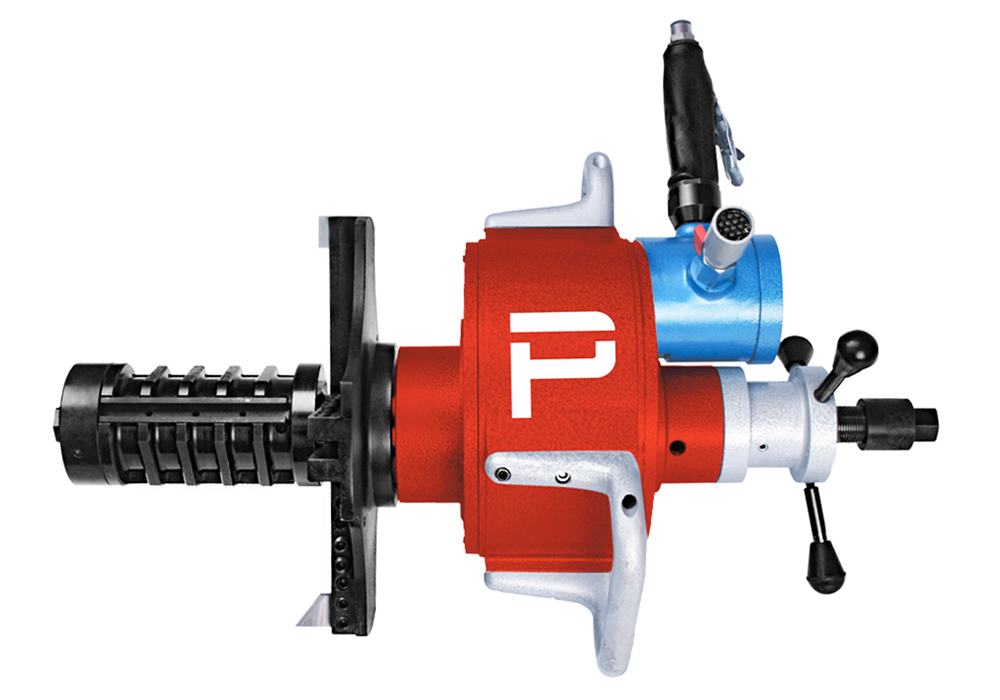

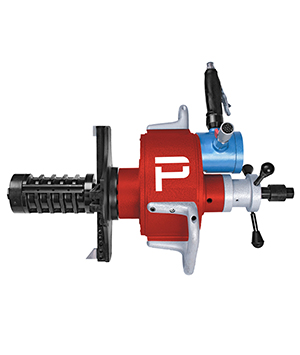

FMP-12000 Pneumatic

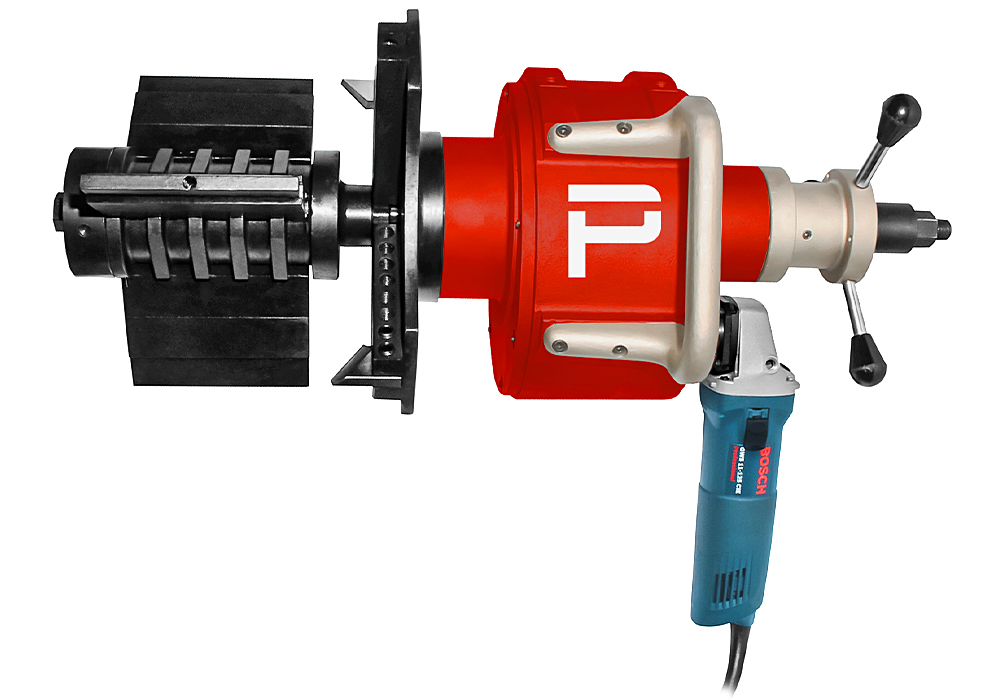

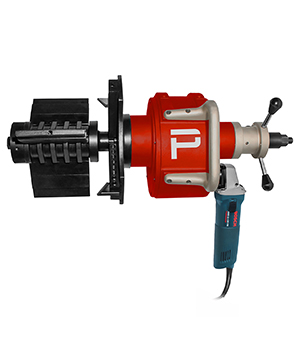

FME-12000 Electric

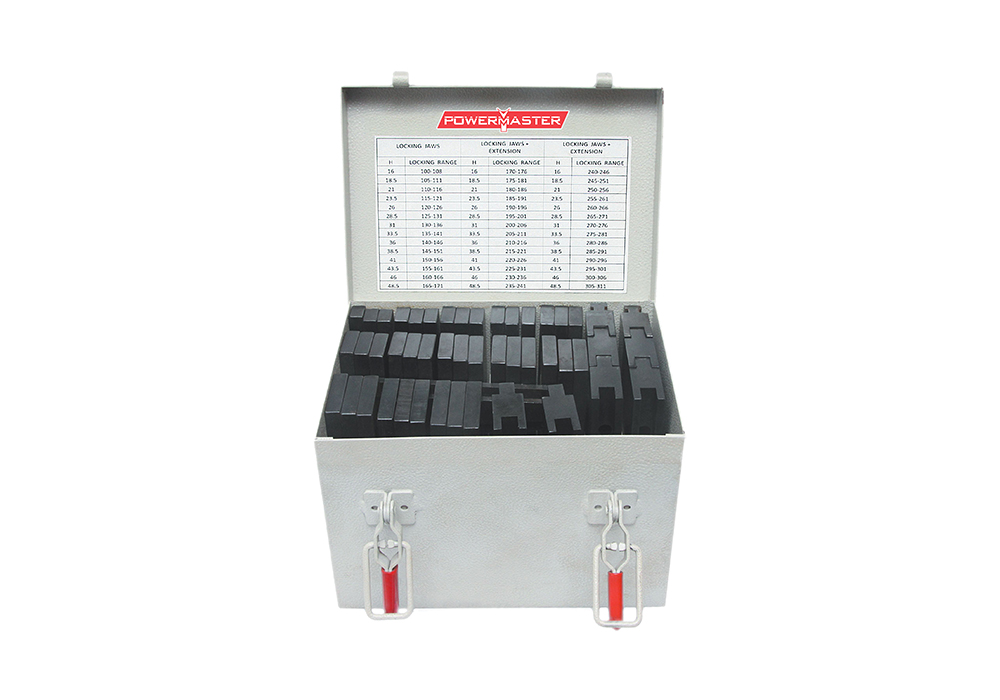

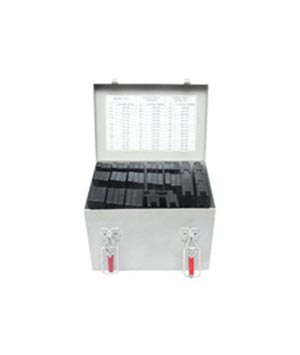

FM-12000 (100-306mm) - Jaw Set
The FM-12000 is a combination of power and range in a light and portable design. Rugged and balanced machine suitable for tubes and pipes in the size range of 100mm to 306mm in internal diameter.
| Drive | Pneumatic | Electric |
|---|---|---|
| Locking Range mm (inch) | 100-306 (4”- 12”) | 100-306 (4”- 12”) |
| Ideal Speed RPM | 35 | 31 |
| Torque Nm (lbf.ft) | 180 (132.76) | 230 (169.63) |
| Feeding Stroke mm (inch) | 50 (1.15/16”) | 50 (1.15/16”) |
| Pneumatic Power HP | 1.88 | - |
| Air Consumption cfm | 0 | - |
| Air Pressure Bar (psi) | 6 (90) | - |
| Electric Power watts | - | 2000 |
| Voltage V | - | 110/220 V |
| Net Weight kg (lb) | 43.0 (94.80) | 44.0 (97.00) |
