Tube End Facing Machines - 3000

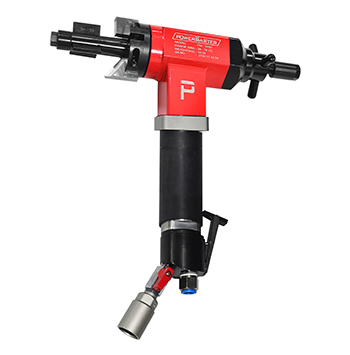

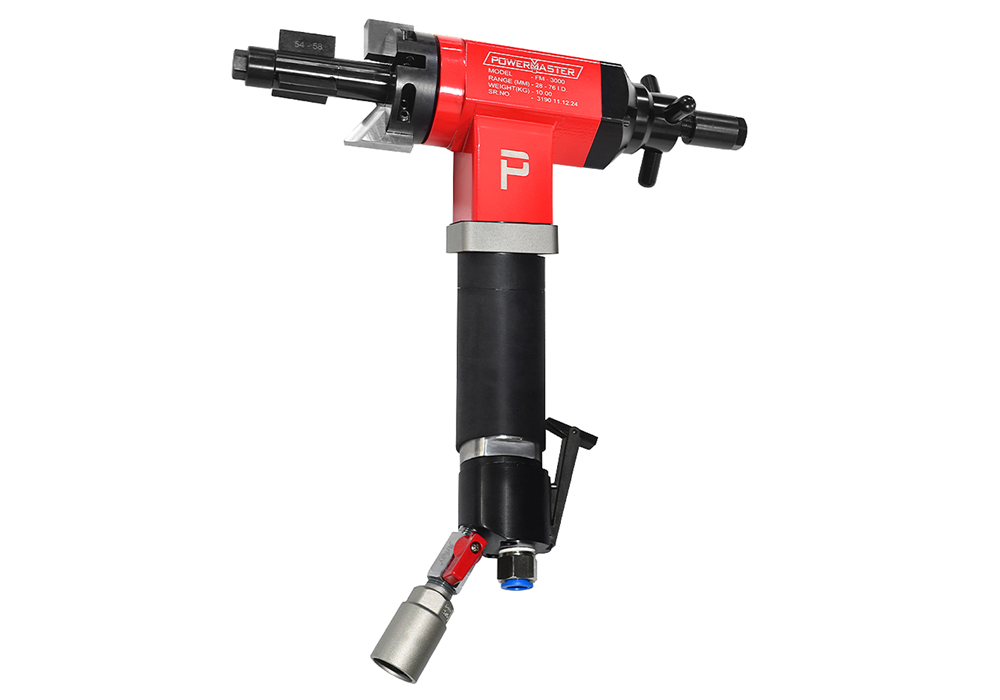

FMP- 3000 - Pneumatic

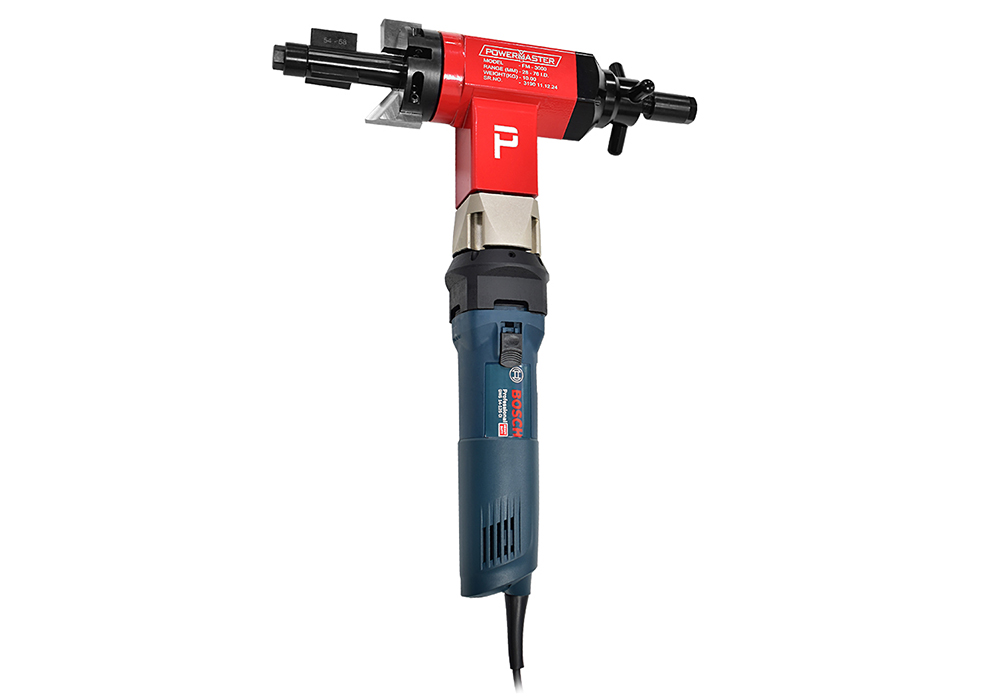

FME-3000 - Electric

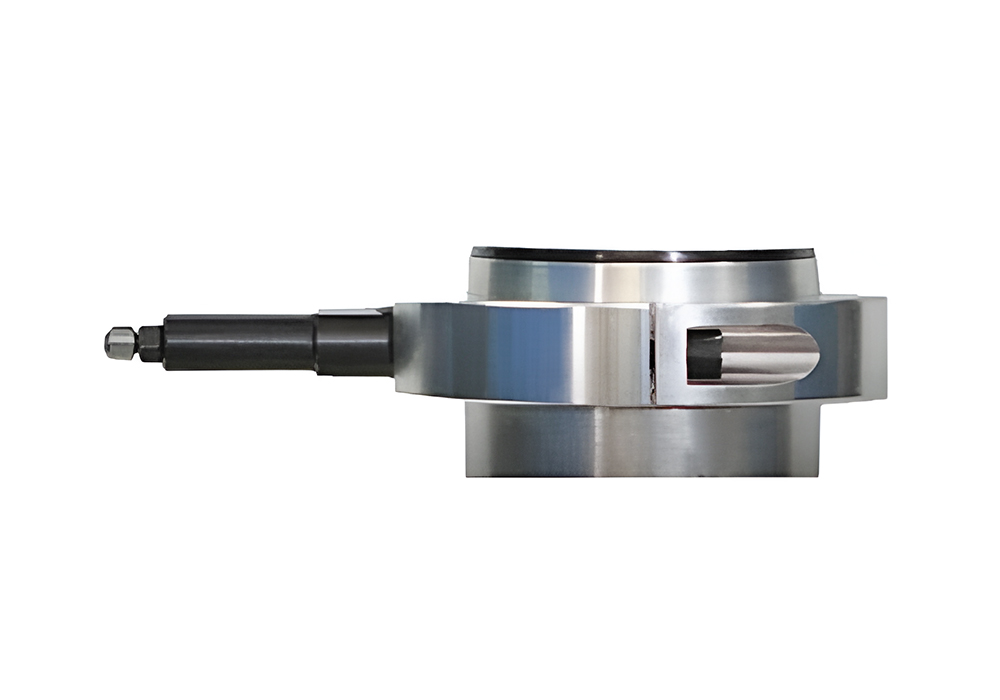

Stopper - FM 3000

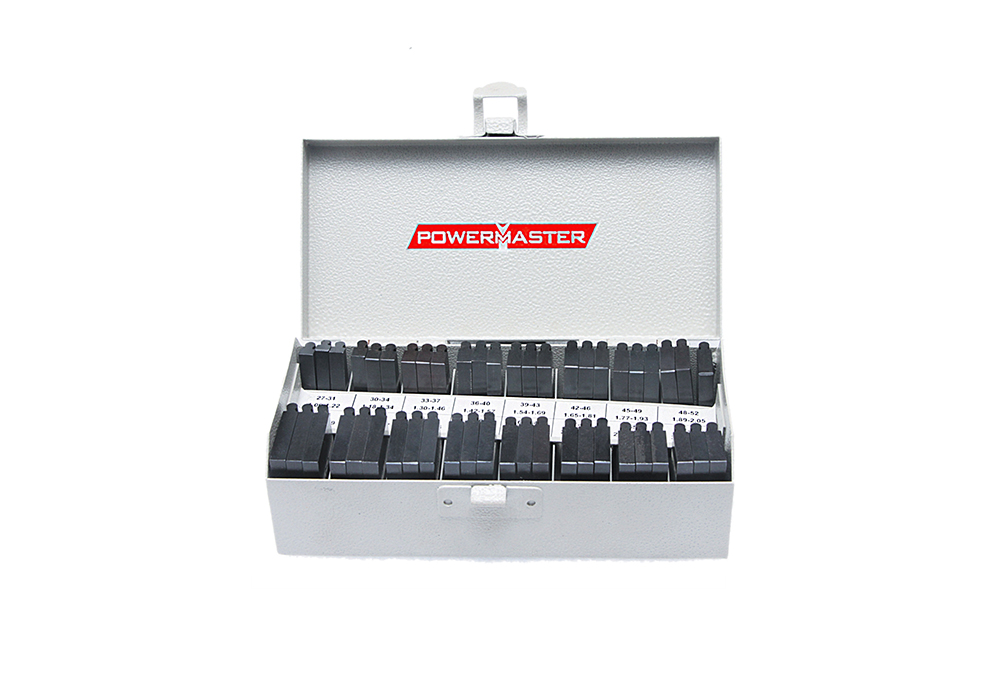

FM-3000 (28-76mm) - Jaw Set
The FM-3000 is the most popular and powerful machine used on boiler tubes. Allows quick interchangeability of locking jaws to suit wide range of diameters. Modular and ergonomic design. Easy to handle and quick to setup.
| Drive | Pneumatic | Electric |
|---|---|---|
| Locking Range mm (inch) | 28 – 76 (1.1/8” - 3”) | 28 – 76 (1.1/8” - 3”) |
| Idal Speed RPM | 110 | 75 |
| Torque Nm (lbf.ft) | 56 (41.30) | 82 (60.48) |
| Feeding Stroke mm (inch) | 40 (1.9/16”) | 40 (1.9/16”) |
| Pneumatic Power HP | 0.70 | - |
| Air Consumption cfm | 34 - 36 | - |
| Air Pressure Bar (psi) | 6 (90) | - |
| Electric Power watts | - | 1000 |
| Voltage V | - | 110 / 220 V |
| Net Weight kg (lb) | 8.0 (17.63) | 9.0 (19.84) |
