Tube End Facing Machines - 4000

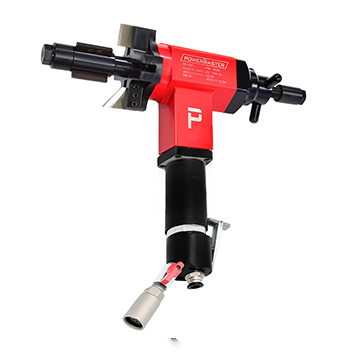

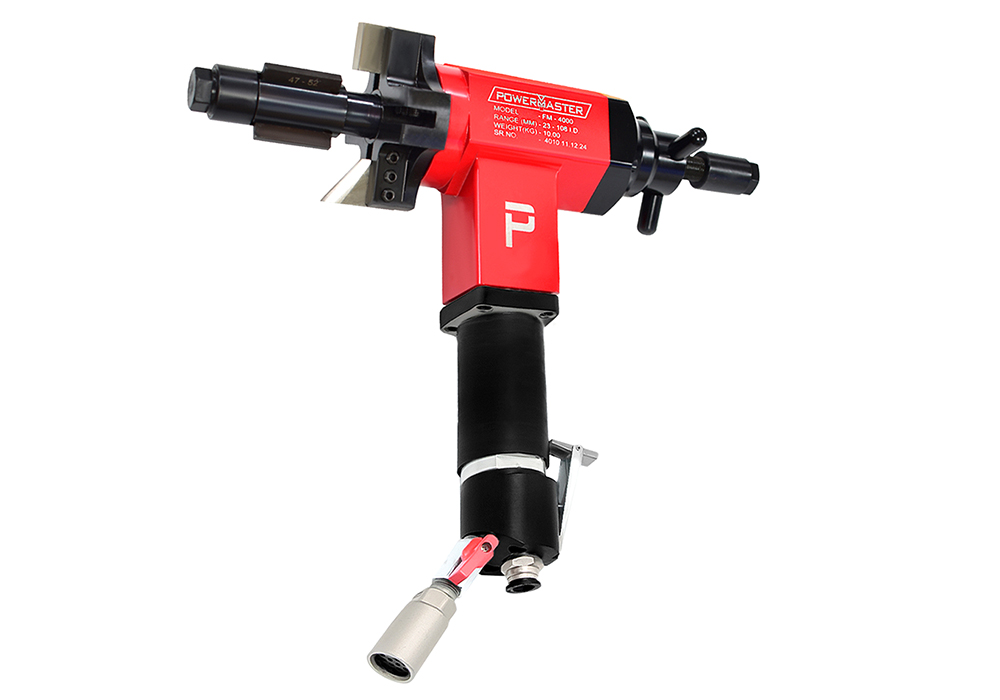

FMP-4000 Pneumatic

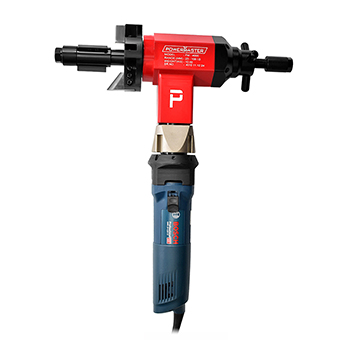

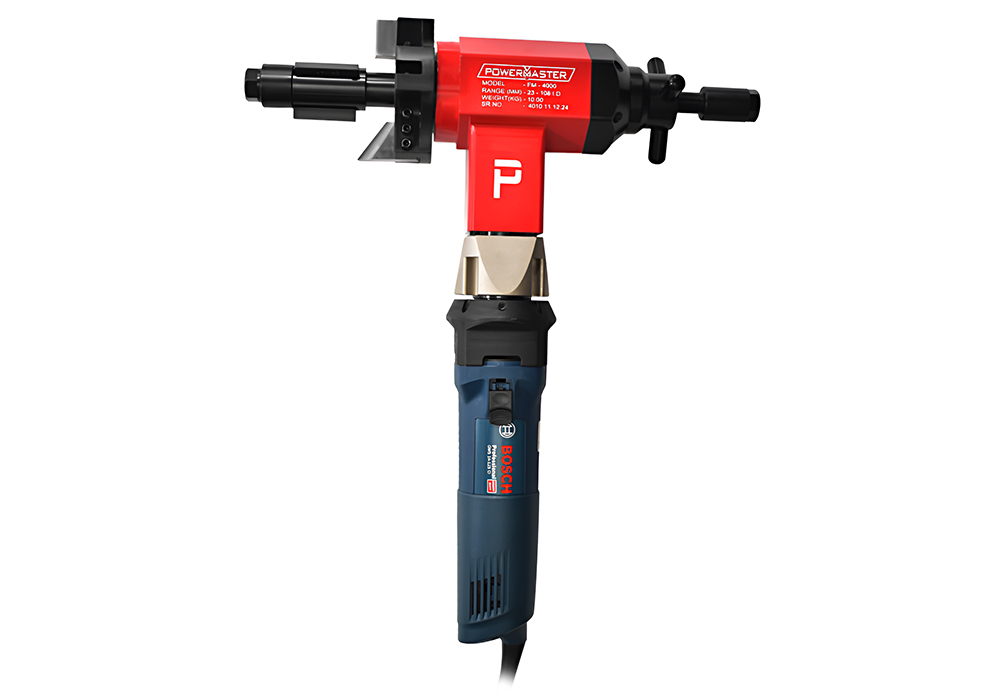

FME-4000 Electric
Stopper - FM 4000

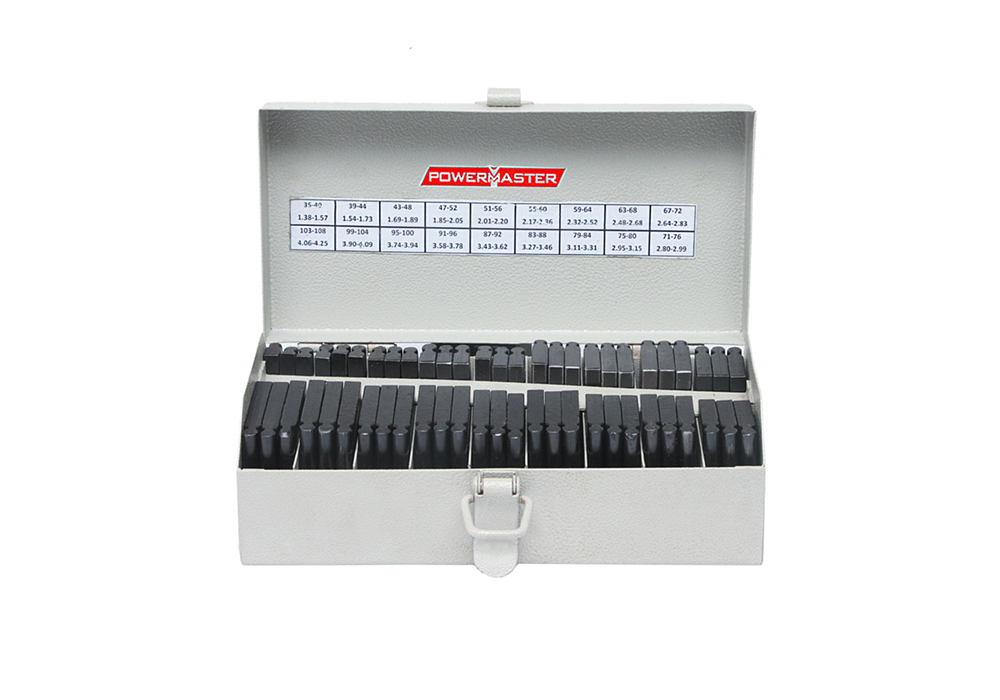

FM-4000 (23-104mm) - Jaw Set

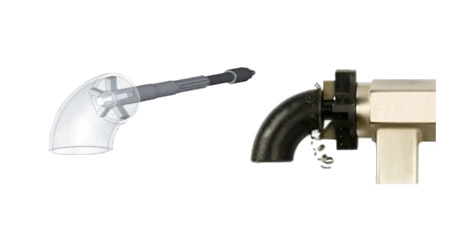

Elbow Shaft - FM 4000
Elbow locking mechanism helps in latching of machine onto curved pipes (Bends) ranging from 23mm to 112mm.

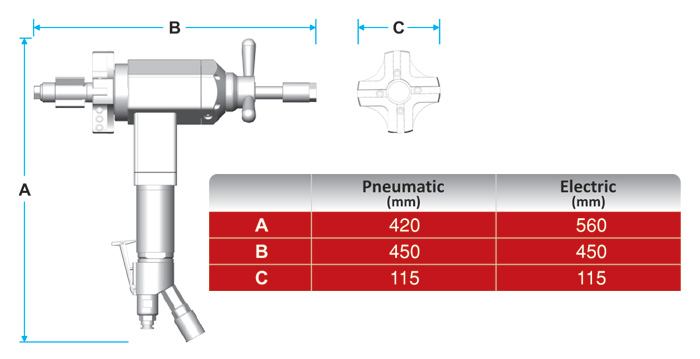

The FM-4000 is a portable and powerful machine used on boiler tubes. Light in weight and easy in handling make it very useful. Modular and ergonomic design with high torque makes it useful for heavy duty working conditions.
| Drive | Pneumatic | Electric |
|---|---|---|
| Locking Range mm (inch) | 23 - 104 (1” - 4”) | 23 – 104 (1” - 4”) |
| Idal Speed RPM | 70 | 70 |
| Torque Nm (lbf.ft) | 140 (103.25) | 143 (105.47) |
| Feeding Stroke mm (inch) | 40 (1.9/16”) | 40 (1.9/16”) |
| Pneumatic Power HP | 1.33 | - |
| Air Consumption cfm | 55-60 | - |
| Air Pressure Bar (psi) | 6 (90) | - |
| Electric Power watts | - | 1000 |
| Voltage V | - | 110/220 V |
| Net Weight kg (lb) | 9.0 (19.84) | 10.0 (22.00) |
