Tube End Facing Machines - 1625
FMP-1625 Pneumatic

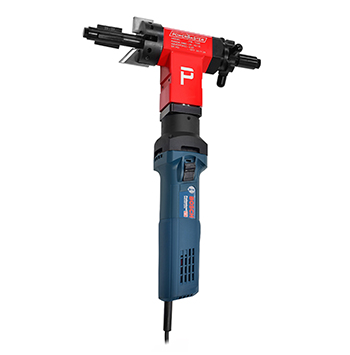

FME-1625 - Electric

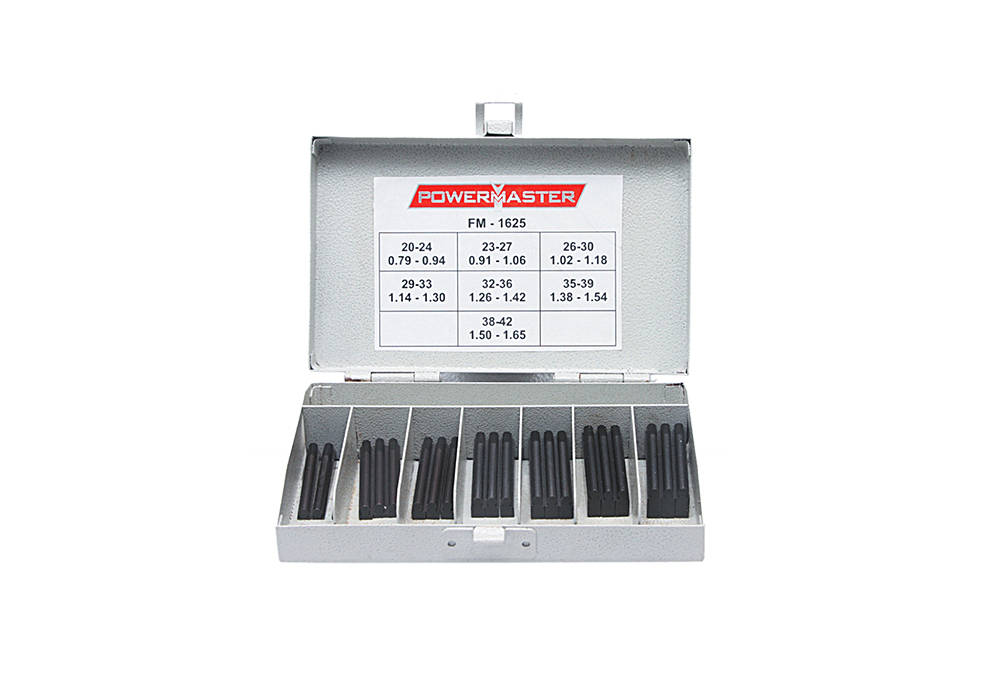

FM–1625 (20-42 mm) - Jaw Set

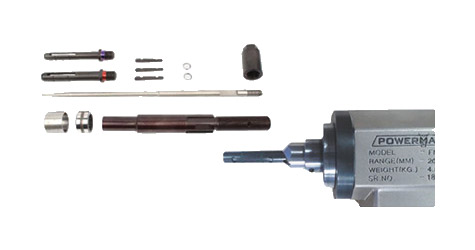

Mini Micro Shaft - FM 1625
Mini Micro shaft tops 9.6mm upto 12.5mm.
Stopper arrangement for facing Machine - FM 1625
Sopper once set prevents excess machining on the tube end. Only desired tube part is machined as stopper blocks further travel of machine.
The FM-1625 is a light weight and compact machine for facing, bevelling and weld preparation on materials including stainless steel, duplex, inconel and others. One operator performs weld preparations safely, accurately and quickly vs. the slow and cumbersome grinding operation. Easy to handle and quick to setup. Used in shutdown environments on condensers and heat exchangers.
| Drive | Pneumatic | Electric |
|---|---|---|
| Locking Range mm (inch) | 20 – 42 (3/4” - 1.5/8”) | 20 – 42 (3/4” - 1.5/8”) |
| Idal Speed RPM | 235 | 250 |
| Torque Nm (lbf.ft) | 29 (21.38) | 45 (33.19) |
| Feeding Stroke mm (inch) | 23 (7/8”) | 23 (7/8”) |
| Pneumatic Power HP | 0.583 | - |
| Air Consumption cfm | 15-18 | - |
| Air Pressure Bar (psi) | 6 (90) | - |
| Electric Power watts | - | 850 |
| Voltage V | - | 110 / 220 V |
| Net Weight kg (lb) | 4.8 (10.58) | 5.5 (12.12) |
