Bridge Side Attachment

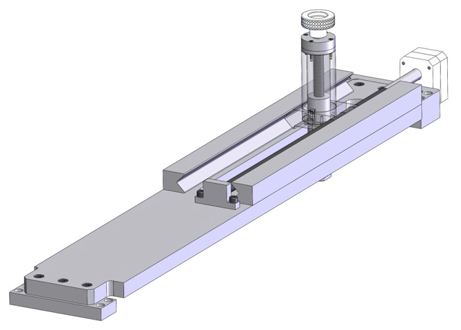

Facing Attachement

Facing Attachement

Features

  • Light and portable Flange Facing Attachment used with Powermaster Split Frame Machines.
  • Powermaster offers a range of these attachments for resurfacing a flat face and raised flange faces and machining of RTJ Grooves.
  • Suitable Flange size from 50.8mm OD to 1219.2 mm OD (2" to 48").

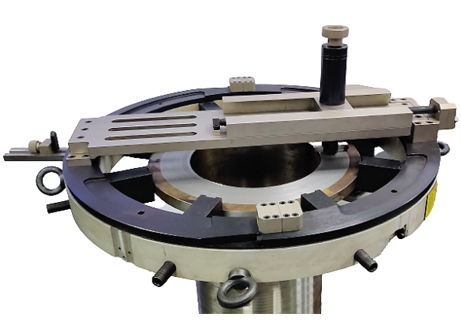

Split Fame Machine Attachement

Split Fame Machine Attachement

Technical Details

 Model No. Suitable for Machine Facing Range Flange OD Range
inch inch
BS-SF-12 SF-2-6, SF-6-12 0 - 12 02 - 12
BS-SF-13 SF-12-18, SF-18-24 00 - 24 12 - 24
BS-SF-14 SF-24-32, SF-28-36 0 - 36 24 - 36
BS-SF-15 SF-34-42, SF-40-48 0 - 48 34 - 48
