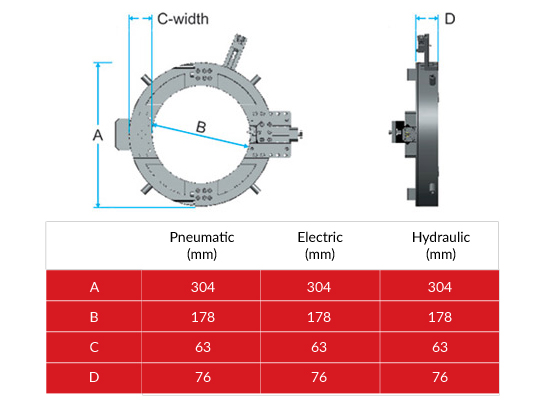

Tube / Pipe Bevelling and Cutting Machine - SF-26
Externally mounted SF-26 is a split frame, clamshell type light and portable design. A rugged and slim machine suitable for tubes and pipes in the size range of 50.8 mm to 152.4 mm in external diameter. It is a new generation heavy duty facing, bevelling and cutting machine designed for the Piping industry.
Technical Specification
| Drive | Pneumatic | Electric | Hydraulic |
|---|---|---|---|
| Locking Range mm (inch) | 50.8-152.4 (2” - 6”) | 50.8-152.4 (2” - 6”) | 50.8-152.4 (2” - 6”) |
| Idle Speed RPM | 34 | 37 | 35 |
| Power HP/Watts | 4 | 1.5/1100 | 5 HP(3 PHASE) |
| Air Consumption cfm | 95 | - | - |
| Air/Oil PressureBar (psi) | 6.2 (90) | - | 100 bar |
| Voltage V | - | 230 | 415 |
| Net Machine Weight kg (lb) | 17.5(38.5) | 17.5(38.5) | 17.5(38.5) |
| Tool Holder Weight kg (lb) | 4.0(8.8) | 4.0(8.8) | 4.0(8.8) |
| Drive Weight kg (lb) | 7.0(15.4) | 6.0(13.2) | 7.0(15.4) |
