Tube / Pipe Bevelling and Cutting Split Frame Machine- SF-1218

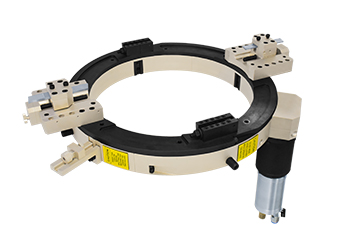

SF-1218 Pneumatic

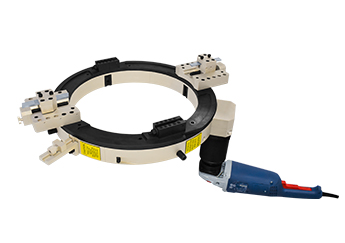

SF-1218 Electric

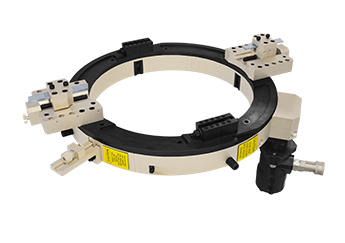

SF-1218 Hydraulic
Externally mounted SF-1218 is a split frame, clamshell type light and portable design. A rugged and slim machine suitable for tubes and pipes in the size range of 304.8 mm to 457.2 mm in external diameter. It is a new generation heavy duty facing, bevelling and cutting machine designed for the Piping industry.
Technical Specification
| Drive | Pneumatic | Electric | Hydraulic |
|---|---|---|---|
| Locking Range mm (inch) | 304.8- 457.2 (12” - 18”) | 304.8-457.2 (12” - 18”) | 304.8-457.2 (12” - 18”) |
| Idle Speed RPM | 15 | 16 | 14 |
| Power HP/Watts | 4 | 2.7/2000 | 5 HP(3 PHASE) |
| Air Consumption cfm | 95 | - | - |
| Air/Oil PressureBar (psi) | 6.2 (90) | - | 100 bar |
| Voltage V | - | 230 | 415 |
| Net Machine Weightkg (lb) | 38(83.8) | 38(83.8) | 38(83.8) |
| Tool Holder Weight kg (lb) | 4.5(9.9) | 4.5(9.9) | 4.5(9.9) |
| Drive Weight kg (lb) | 12.5(27.6) | 14.0(30.9) | 8.0(17.6) |
