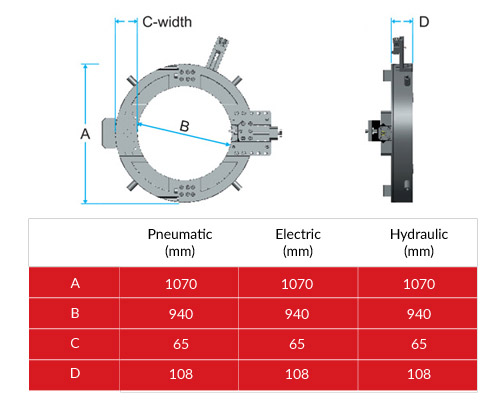

Tube Pipe Bevelling and Cutting Split Frame Machine Sf-2836
SF-2836 Pneumatic
SF-2836 Electric
SF-2836 Hydraulic
Externally mounted SF-3036 is a split frame, clamshell type light and portable design. A rugged and slim machine suitable for tubes and pipes in the size range of 711.2 mm to 914.4 mm in external diameter. It is a new generation heavy duty facing, bevelling and cutting machine designed for the Piping industry.
Helical coil for Aluminium fixed ring threads
Helical coil inserts
Aluminium fixed ring
Helical coil inserts used in the aluminium ring reduces the wear caused by the ‘Back & Fourth’ movement of the base jaw set.
Technical Specification
| Drive | Pneumatic | Electric | Hydraulic |
|---|---|---|---|
| Locking Range mm (inch) | 711.2-914.4 (28” - 36”) | 711.2-914.4 (28” - 36”) | 711.2-914.4 (28” - 36”) |
| Idle Speedrpm | 10 | 11 | 10 |
| Power HP/Watts | 4.2 | 3.5/2600 | 7.5 HP(3 PHASE) |
| Air Consumption cfm | 95 | - | - |
| Air/Oil PressureBar (psi) | 6.2 (90) | - | 100 bar |
| Voltage V | - | 230 | 415 |
| Net Machine Weight kg (lb) | 106.0(234.0) | 106.0(234.0) | 106.0(234.0) |
| Tool Holder Weight kg (lb) | 5.0(11.0) | 5.0(11.0) | 5.0(11.0) |
| Drive Weight kg (lb) | 16.0(35.3) | 23.0(50.7) | 9.0(19.8) |
