Tube Pipe Bevelling and Cutting Split Frame Machine Sf-6072
SF-6072 Hydraulic

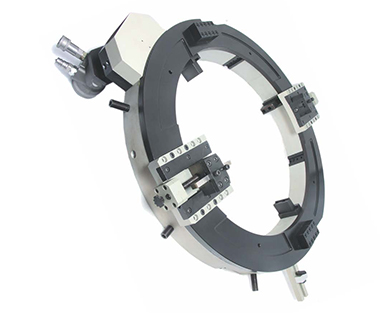

Externally mounted SF-6072 is a split frame, clamshell type light and portable design. A rugged and slim machine suitable for tubes and pipes in the size range of 1524 mm to 1829 mm in external diameter. It is a new generation heavy duty facing, bevelling and cutting machine designed for the Piping industry.
Features
- SPLIT FRAME MACHINE - It consists of a split mobile ring and fixed ring. Light weight, slim design.
- JAWS - Wedge style hardened tool steel jaws for maximum life and secure positioning. 8 points of contact locking system. It provides stability and avoids vibration.
- TRIP ASSEMBLY - It gives an auto feed to the tool bit assembly. Trip can be engaged or disengaged depending on feed required.
- TOOL SLIDE - Holds the cutting tool bit assembly tightly at the desired position for the cutting and bevelling operation. Its robust construction and support to the cutting bits ensures vibration free performance.
- PNEUMATIC OR HYDRAULIC DRIVE - High quality pneumatic or hydraulic drive for reliable service and long working life.

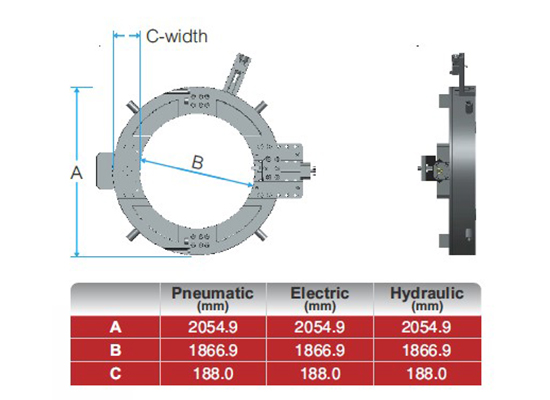

Technical Specification
| Drive | Pneumatic | Electric | Hydraulic |
|---|---|---|---|
| Locking Range mm (inch) |
1524-1829 (60” - 72”) |
1524-1829 (60” - 72”) |
1524-1829 (60” - 72”) |
| Idle Speedrpm | 4 | 4 | 4 |
