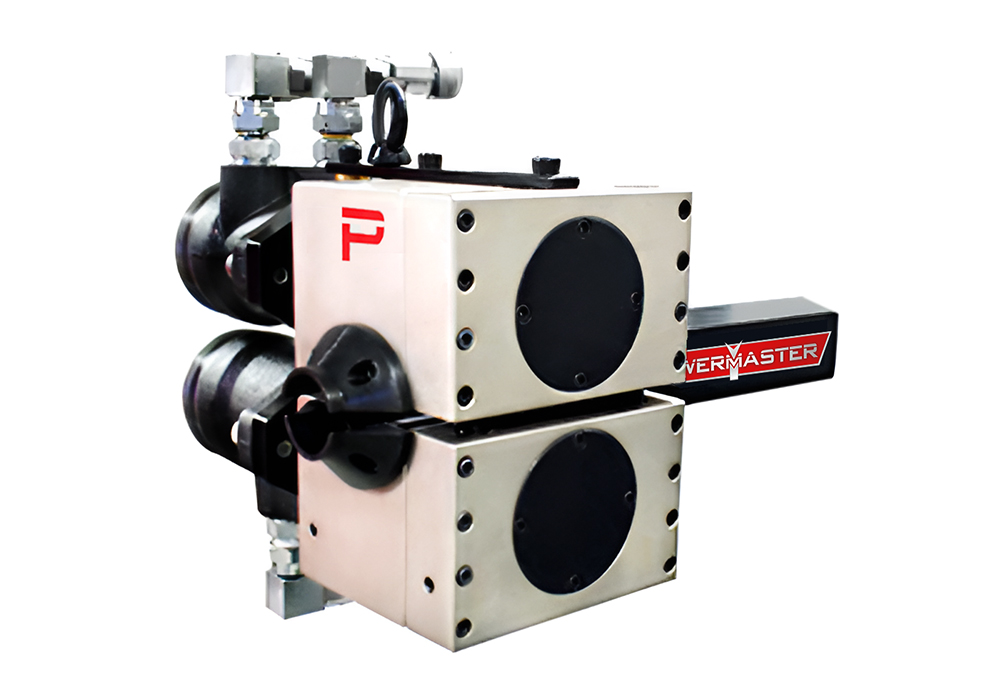

Hydraulic Tube Spin Air
Hydraulic tube spin air is designed to remove Ferrous and Non-Ferrous tubes in round Shape from 5/8" to 1.1 4" OD. Can also be used to extract tubes from 5/8" to 1.1 2" OD using special shaped rolls sized to fit each tube. also, Hydraulic tube Spin air Designed for flatten the Tube with the help of another Gear.
Features of Hydraulic Tube Spin Air
- Pulling rolls are made from tool steel and hardened for extended life.
- High quality, strength construction body is made from aircraft grade aluminum and is anodized for high corrosion resistance.
- Nose piece and bearing caps are made from stainless steel for corrosion resistance.
- Fully sealed bearings guarantee thousands of hour's trouble free operation!
Technical Details / Drive
| Model No. | Speed | Torque | Socket | Weight |
|---|---|---|---|---|
| rpm | Nm | inch | kg | |
| HED-4 | 480 | 80 | 3/8 & 1/2 | 9.7 |
Technical Details / Pump
| Model No. | Oil Tank Capacity | Max. Working Pressure | Electric Motor | |
|---|---|---|---|---|
| Ltrs. | bar | HP | Phase | |
| HEP-500 | 45 | 100 | 5 | 3 |
