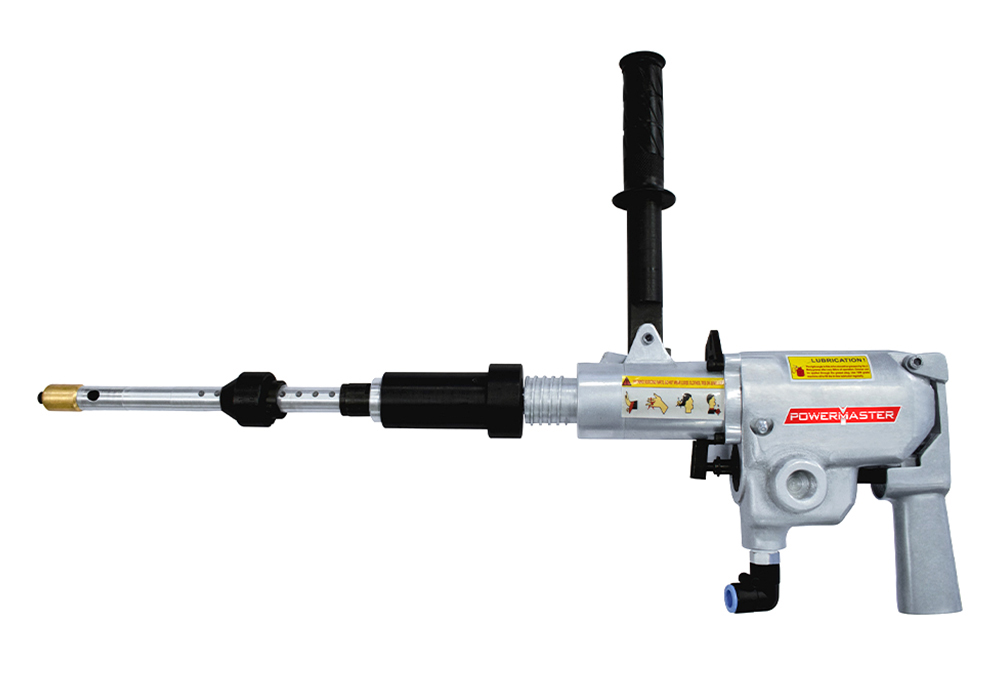

Pneumatic Lever Type Tube Cutter
The design of these tube cutters are such that they cut ferrous and non - ferrous tubes quickly and effortlessly. A constant feed rate of the cutting bit is achieved by combining high torque motors with our lever assist unit. It results in higher productivity and an extended life of the cutter.
We also offer similar machines for tube facing and seal weld removal tools.
Features of Pneumatic Lever Type Tube Cutter
- Fast tool change from one diameter tool to another.
- Tool bit is easily changed without disassembling the tool.
- Lightweight and durable.
Technical Details of Tube Cutters
| Model No. | PLTC - 400 | PLTC - 600 | PLTC - 1250 | |
|---|---|---|---|---|
| Free Speed | RPM | 400 | 600 | 1250 |
| Maximum Torque | Nm | 36,00 | 21,81 | 12,2 |
| in.Lbs | 318 | 193 | 108 | |
| Weight | Kg | 4,76 | 4,76 | 4,76 |
| Lbs | 10,5 | 10,5 | 10,5 | |
| Length | mm | 311 | 311 | 311 |
| inch | 12-1/4 | 12-1/4 | 12-1/4 | |
| Air Consumption | l/min | 1700 | 1700 | 1700 |
| cfm | 60 | 60 | 60 | |
| Tube Material Suited for | Carbon Steel | Brass | Copper | |
| Suited For Tube O.D. | Upto 1" | |||
