Continuous Hydraulic Tube Puller

Features of Continuous Hydraulic Tube Puller

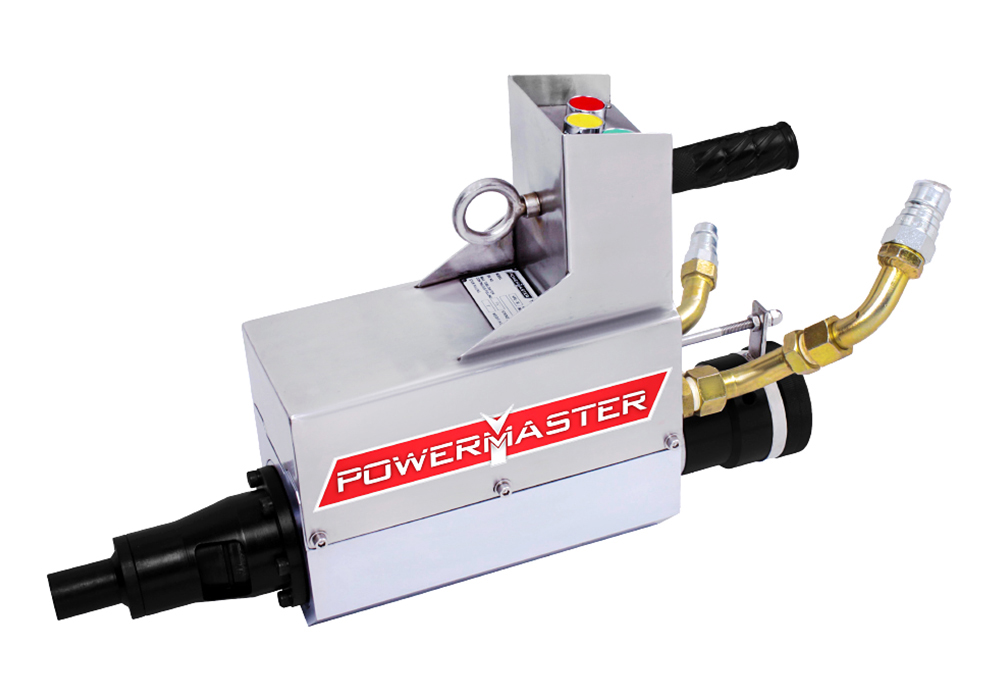

• Hydraulic Tube Pulling gun communicates with powerpack via 9v DC remote control. This ensures safety and eliminates the need of electrical cord between pump and gun that other manufacturers provide.
• Available with a choice of Electric-TPP System or Pneumatic-PPP System for hazardous, explosive working environments.
• Microprocessor controls on powerpack and hydraulic tube pulling gun ensure trouble free life.
• Removes tube without any damage to tube sheet.
• Low setup time and ease of operation.
• High power & High speed automatic cycling, for highest speed of tube puller available worldwide.
• Auto switchover from low pressure high flow to high pressure low flow on load and again back to low pressure high flow when load is released.
• Automatic slow start feature to minimize risk of breaking tube puller and to conserve consumables.

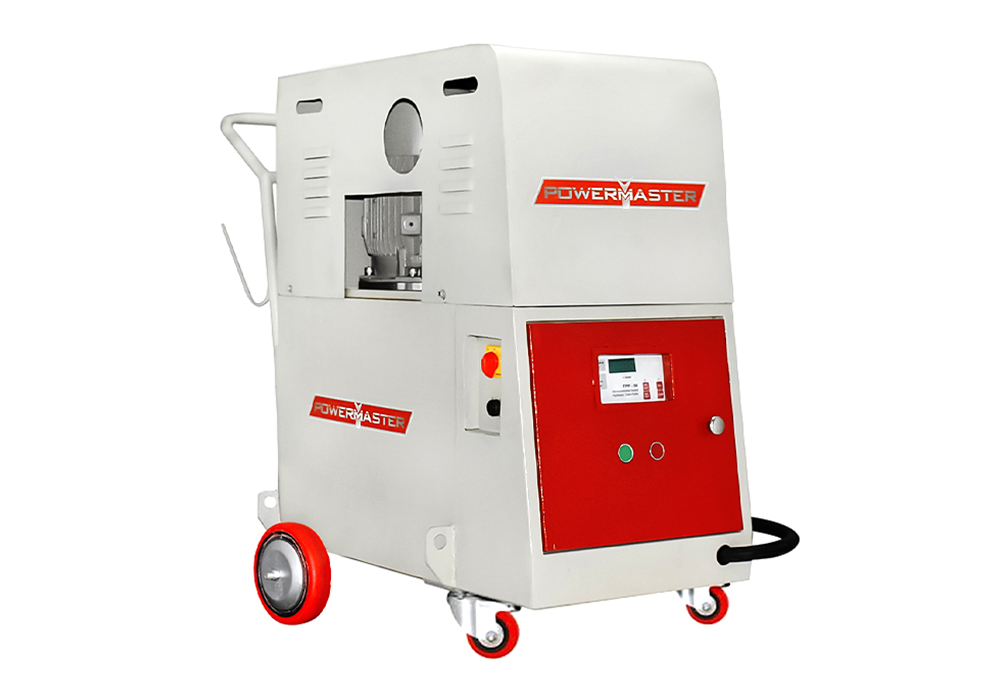

• Compact design of Powerpack and Hydraulic Tube Pulling Gun.
• Interchangeable tube pulling guns with same powerpack. 15 ton gun for light duty high speed work, 30 ton gun for heavy duty tube puller, 45 ton gun for tubes upto 3” O.D. and 60 ton gun for tubes upto 4” O.D.
• Stainless steel construction body of powerpack for longer corrosion free life.
• Hydraulic Tube Pulling up to 3” OD tubes continuously, Tube Puller up to 5” O.D. stub.
• Low maintenance cost and worldwide availability of components of the Stub Puller.
• Significant saving of time and money over conventional systems.
• Unit is portable with handle and mounted on four wheels for easy handling.
• Unit will pull tube continuously through the gun effortlessly, needing only one man for operation.

Technical Details
