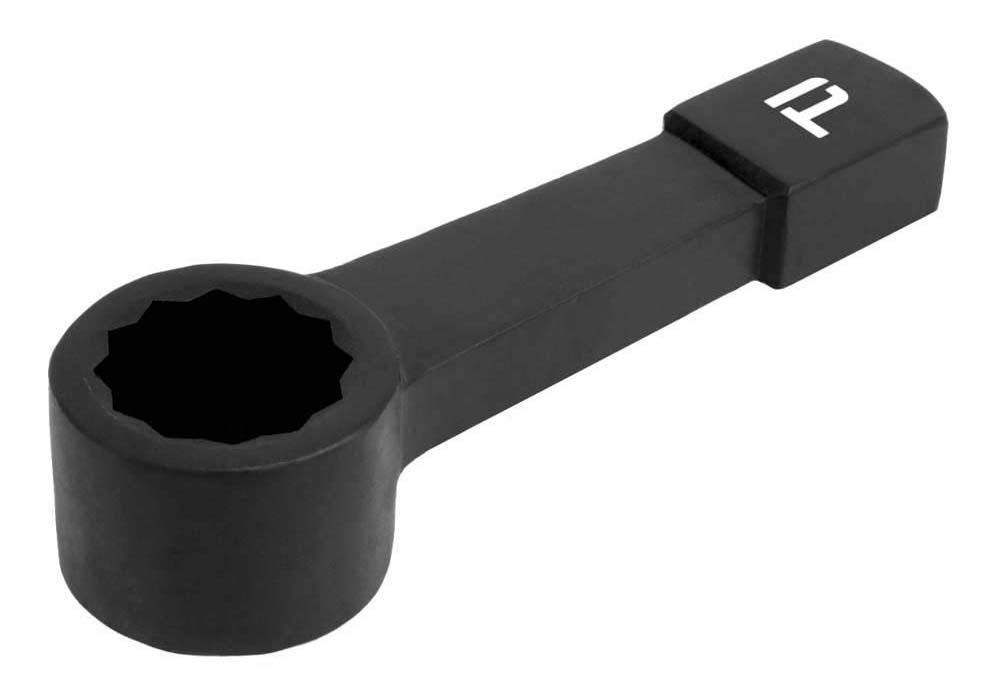

Box Bi Hex Slugging Wrenches Fractional Bihexagon
| A/F inch |
MODEL NO. |
T inch |
D inch |
OAL inch |
|---|---|---|---|---|
| 15/16 1.1/16 1.1/8 |
ABSW15 ABSW17 ABSW18 |
1.575 1.575 1.575 |
1.850 1.850 2.126 |
7.086 7.086 7.677 |
| 1.1/4 1.5/16 1.3/8 |
ABSW20 ABSW21 ABSW22 |
1.772 1.772 1.772 |
2.126 2.126 2.126 |
7.677 7.677 7.677 |
| 1.7/16 1.1/2 1.5/8 |
ABSW23 ABSW24 ABSW26 |
1.772 1.772 1.772 |
2.362 2.598 2.598 |
7.874 8.661 8.661 |
| 1.11/16 1.13/16 1.7/8 |
ABSW27 ABSW29 ABSW30 |
1.968 1.968 1.968 |
2.952 2.952 2.952 |
9.055 9.055 9.055 |
| 2
2.1/16 2.3/16 |
ABSW32 ABSW33 ABSW35 |
1.968 1.968 2.362 |
3.149 3.149 3.464 |
9.645 9.645 10.236 |
| 2.1/4 2.3/8 2.7/16 |
ABSW36 ABSW38 ABSW39 |
2.362 2.362 2.362 |
3.464 3.700 3.700 |
10.236 10.630 10.630 |
| 2.9/16 2.5/8 2.3/4 |
ABSW41 ABSW42 ABSW44 |
2.756 2.756 2.756 |
4.094 4.094 4.330 |
11.417 11.417 12.598 |
| 2.13/16 2.15/16 3 |
ABSW45 ABSW47 ABSW48 |
2.756 3.149 3.149 |
4.330 4.330 4.330 |
12.598 12.598 12.598 |
| 3.1/8 3.3/8 3.1/2 |
ABSW50 ABSW51 ABSW56 |
3.149 3.543 3.543 |
4.961 4.961 5.984 |
13.779 13.779 15.157 |
| 3.3/4 3.7/8 4.1/8 |
ABSW60 ABSW62 ABSW66 |
3.740 3.740 4.133 |
5.984 6.102 6.772 |
15.157 16.338 16.535 |
| 4.1/4 4.1/2 4.5/8 |
ABSW68 ABSW72 ABSW74 |
4.133 4.133 4.133 |
6.772 6.772 7.637 |
16.535 16.535 19.094 |
| 4.7/8 5 5.1/4 |
ABSW78 ABSW80 ABSW84 |
4.527 4.527 4.527 |
7.637 8.071 8.071 |
19.094 20.276 20.276 |
| 5.3/8 5.5/8 5.3/4 |
ABSW86 ABSW90 ABSW92 |
4.527 4.921 4.921 |
8.071 9.055 9.055 |
20.276 22.638 22.638 |
| 6 6.1/8 6.1/2 |
ABSW96 ABSW98 ABSW104 |
5.314 5.314 5.905 |
9.055 9.055 10.630 |
22.638 22.638 25.394 |
| 6.7/8 7.1/8 7.1/4 |
ABSW110 ABSW114 ABSW116 |
5.905 5.905 5.905 |
10.630 11.614 11.614 |
25.394 27.165 27.165 |
| 7.5/8 7.7/8 8 |
ABSW122 ABSW126 ABSW128 |
5.905 5.905 5.905 |
11.614 11.614 11.614 |
27.165 27.165 27.165 |
| 8.3/8 8.3/4 9.1/8 |
ABSW134 ABSW140 ABSW146 |
6.299 6.299 6.299 |
12.795 12.795 12.795 |
28.937 28.937 28.937 |
