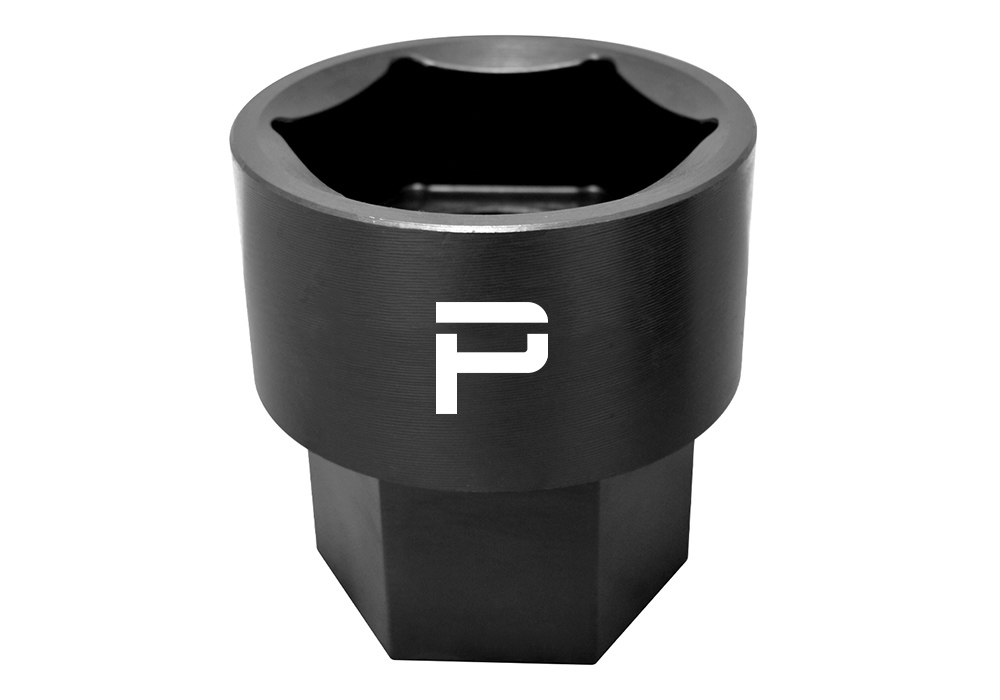

Fractional Hexagon
| A/F inch |
MODEL NO. |
T inch |
B inch |
D inch |
OAL inch |
|---|---|---|---|---|---|
| 15/16 1.1/16 1.1/8 |
AIS15 AIS16 AIS18 |
0.591 0.630 0.669 |
0.629 0.787 0.864 |
1.535 1.693 1.850 |
1.610 1.690 1.810 |
| 1.1/4 1.5/16 1.3/8 |
AIS20 AIS21 AIS22 |
0.709 0.748 0.787 |
0.995 0.945 1.000 |
1.929 2.047 2.126 |
1.930 2.010 2.090 |
| 1.7/16 1.1/2 1.5/8 |
AIS23 AIS24 AIS26 |
0.787 0.827 0.906 |
1.000 1.102 1.181 |
2.126 2.244 2.402 |
2.090 2.170 2.400 |
| 1.11/16 1.13/16 1.7/8 |
AIS27 AIS29 AIS30 |
0.984 0.984 1.065 |
1.181 1.299 1.299 |
2.522 2.638 2.750 |
2.640 2.640 2.910 |
| 2 2.1/16 2.3/16 |
AIS32 AIS33 AIS35 |
1.063 1.142 1.142 |
1.417 1.417 1.496 |
2.913 3.000 3.150 |
2.910 3.150 3.150 |
| 2.7/16 2.9/16 2.5/8 |
AIS39 AIS41 AIS42 |
1.260 1.339 1.339 |
1.600 1.770 1.700 |
3.485 3.622 3.720 |
3.390 3.660 3.660 |
| 2.3/4 2.13/16 2.15/16 |
AIS44 AIS45 AIS47 |
1.378 1.378 1.535 |
1.890 1.950 2.000 |
3.898 3.998 4.134 |
3.900 3.900 4.060 |
| 3 3.1/8 3.3/8 |
AIS48 AIS50 AIS54 |
1.535 1.575 1.654 |
2.100 2.150 2.450 |
4.235 4.370 4.720 |
4.060 4.250 4.410 |
| 3.1/2 3.3/4 3.7/8 |
AIS56 AIS60 AIS62 |
1.772 1.890 1.969 |
2.450 2.700 2.700 |
4.921 5.157 5.394 |
4.690 4.920 5.120 |
| 4.1/8 4.1/4 4.1/2 |
AIS66 AIS68 AIS72 |
2.008 2.087 2.160 |
2.900 3.000 3.000 |
5.630 6.906 6.142 |
5.280 5.550 5.790 |
| 4.5/8 4.7/8 5 |
AIS74 AIS78 AIS80 |
2.224 2.362 2.362 |
3.196 3.446 3.446 |
6.378 6.750 6.820 |
6.060 6.340 6.340 |
| 5.1/4 5.3/8 |
AIS84 AIS86 |
2.520 2.520 |
3.725 3.735 |
7.130 7.250 |
6.610 6.610 |
| 5.5/8 5.3/4 |
AIS90 AIS92 |
2.667 2.677 |
3.885 3.985 |
7.640 7.780 |
6.890 6.890 |
