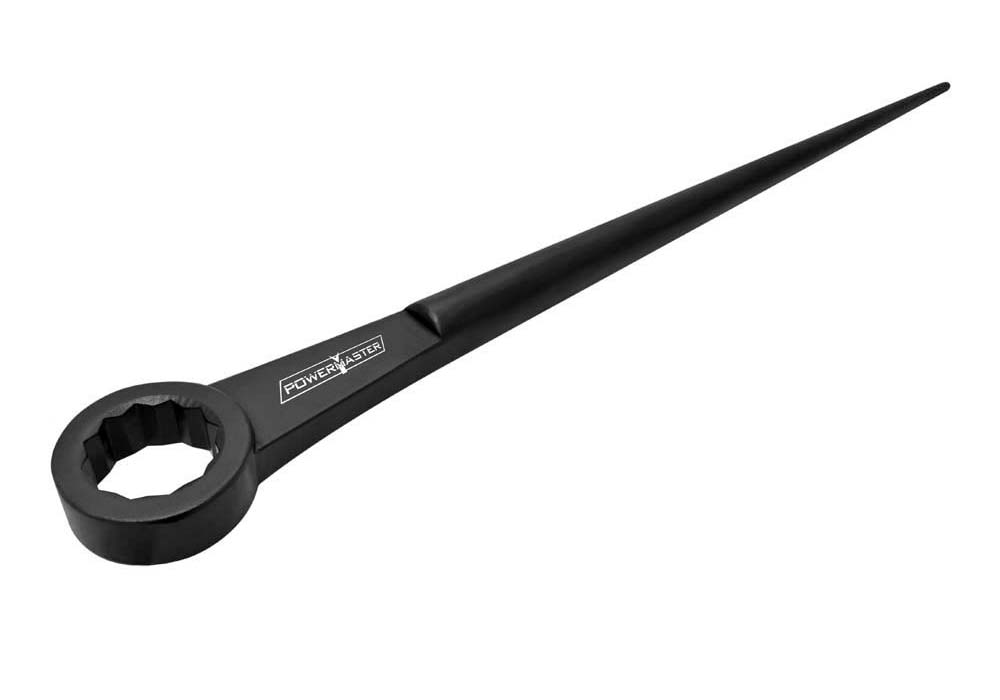

Structural Wrenches Flat Ring Type Fractional Bihexagon
| A/F inch |
MODEL NO. |
T inch |
D inch |
OAL inch |
Wt. lbs. |
|---|---|---|---|---|---|
| 15/16 1.1/16 1.1/8 |
ATW15 ATW17 ATW18 |
0.669 0.669 0.708 |
1.850 1.850 2.125 |
14.763 14.763 14.763 |
1.670 1.670 2.000 |
| 1.1/4 1.5/16 1.3/8 |
ATW20 ATW21 ATW22 |
0.708 0.708 0.708 |
2.125 2.125 2.125 |
16.929 16.929 16.929 |
2.000 2.150 2.150 |
| 1.7/16 1.1/2 1.5/8 |
ATW23 ATW24 ATW26 |
0.787 0.866 0.866 |
2.362 2.598 2.598 |
20.866 20.866 20.866 |
3.520 4.100 4.100 |
| 1.11/16 1.13/16 1.7/8 |
ATW27 ATW29 ATW30 |
0.984 0.984 0.984 |
2.952 2.952 2.952 |
20.866 22.834 22.834 |
4.950 4.950 4.950 |
| 2 2.1/16 2.3/16 |
ATW32 ATW33 ATW35 |
0.984 0.984 1.023 |
3.149 3.149 3.464 |
24.606 24.606 25.984 |
5.610 5.610 6.000 |
| 2.1/4 2.3/8 2.7/16 |
ATW36 ATW38 ATW39 |
1.023 1.102 1.102 |
3.464 3.700 3.700 |
25.984 27.952 27.952 |
6.000 6.270 6.270 |
