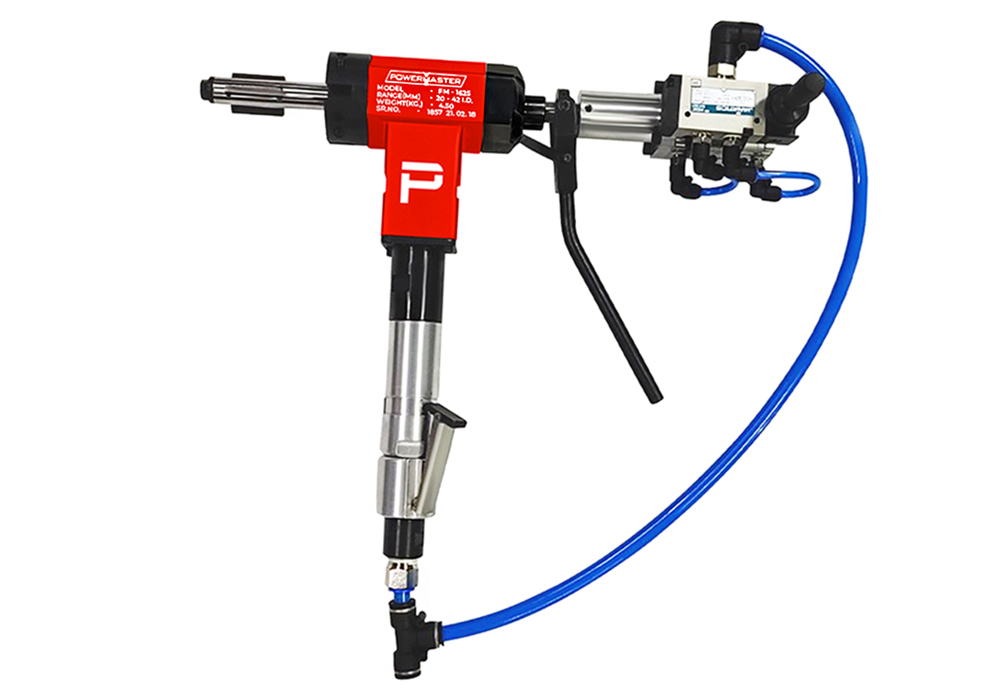

TUBE END FACING MACHINES - 1625 AUTO LOCK LEVER FEED
FM-1625 Auto Lock Feed (20-42mm)

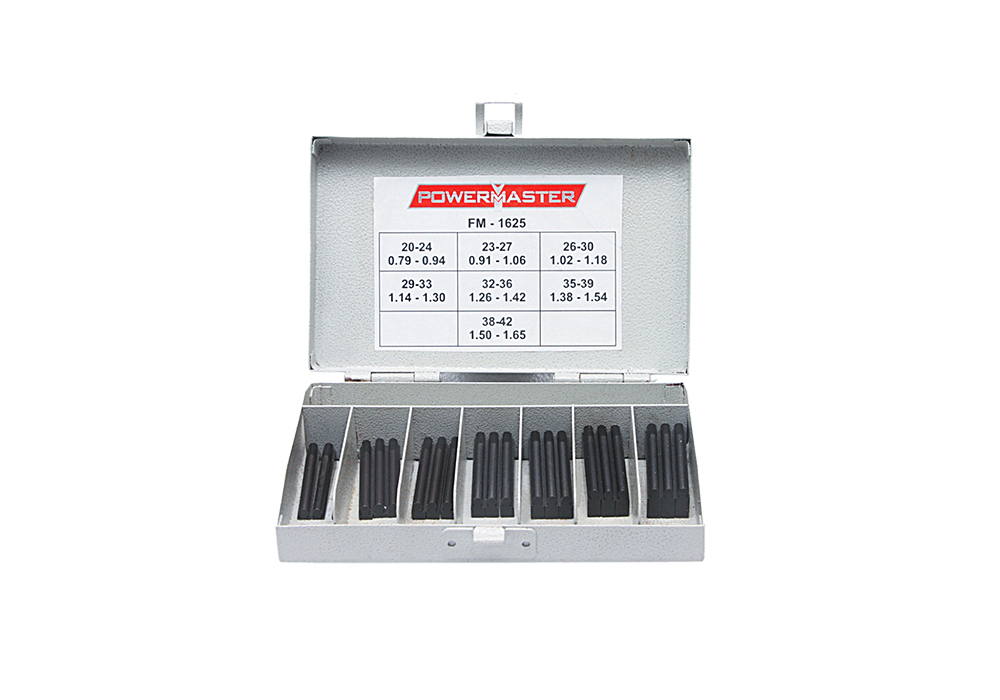

Jaw Set
FMP-1625
The FMP-1625 auto lock lever feed is a light weight and compact machine for facing, bevelling and weld preparation on all materials including stainless steel, duplex, inconel and others. The auto locking feature dramatically reduces production time. It produces fast, accurate weld preps on any schedule and material of pipe effortlessly within its range. Easy to handle and quick to setup. Used in shutdown environments condensers and heat exchangers, boiler.
The FMP-1625 auto lock lever feed comes in 3 different - speed versions (100, 200 and 300 RPM) The lower speed machines develop more torque and are used on larger, thicker and harder tubes.
Specification
| Drive | Pneumatic |
|---|---|
| Locking Range mm (inch) | 12.5 - 42 (1/2” - 1.5/8”) |
| Application Range mm (inch) | 12.5 - 42 (1/2” - 1.5/8”) |
| Free SpeedRPM | 120 |
| Torque Nm (lbf.ft) | 38 (28) |
| Pneumatic Power HP | 0.83 |
| Air Consumption cfm | 15 - 18 |
| Air Pressure Bar (psi) | 6 (90) |

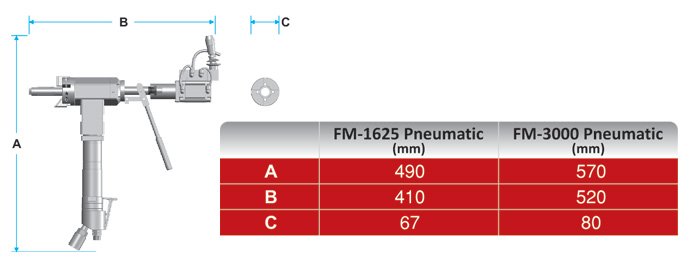

| Body Size (W x H x L)mm | 50 x 400 x 300 |
| Net Weightkg (lb) | 4.8 (10.6) |
